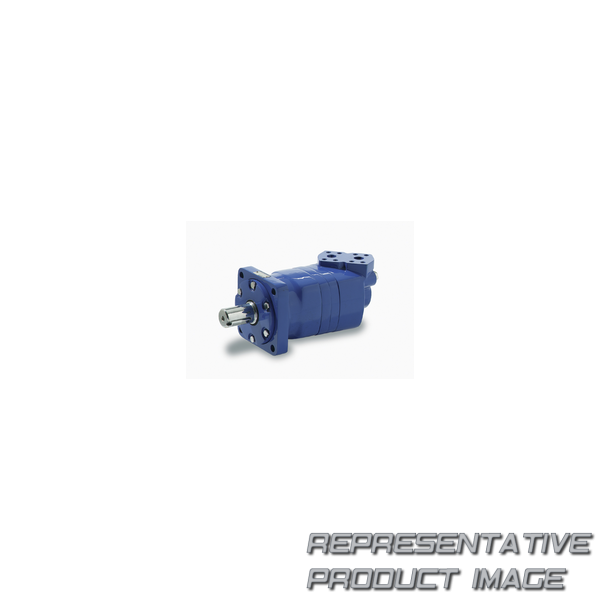

| motors | 6000 series; standard mount motor | ||
| Baureihe | 06 : 6000 series | ||
| Mounting type | ab : standard; (sae cc); 4 bolt; 127.0 [5.00] pilot dia. 14.35 [.565] dia. holes on 162.0 [6.38] dia. bolt circle | ||
| Anschlüsse | ac : g 1 staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | 00 : none |
| Produkt | m : motor | ||
| Schluckvolumen | 300 : 491.4 cm3/r [29.99 in3/r] | ||
| output shaft | 04 : 40.00 [1.575] dia. straight shaft with m12 x 1.75-6h thread in end; 12w x 8h x 63l [.472w x .313h x 2.480l] key | ||
| case flow options | 03 : g 1/4 bsp straight thread port with check valve | ||
| pressure/flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | aa : primer low gloss black | ||
| design code | f : sixth |
