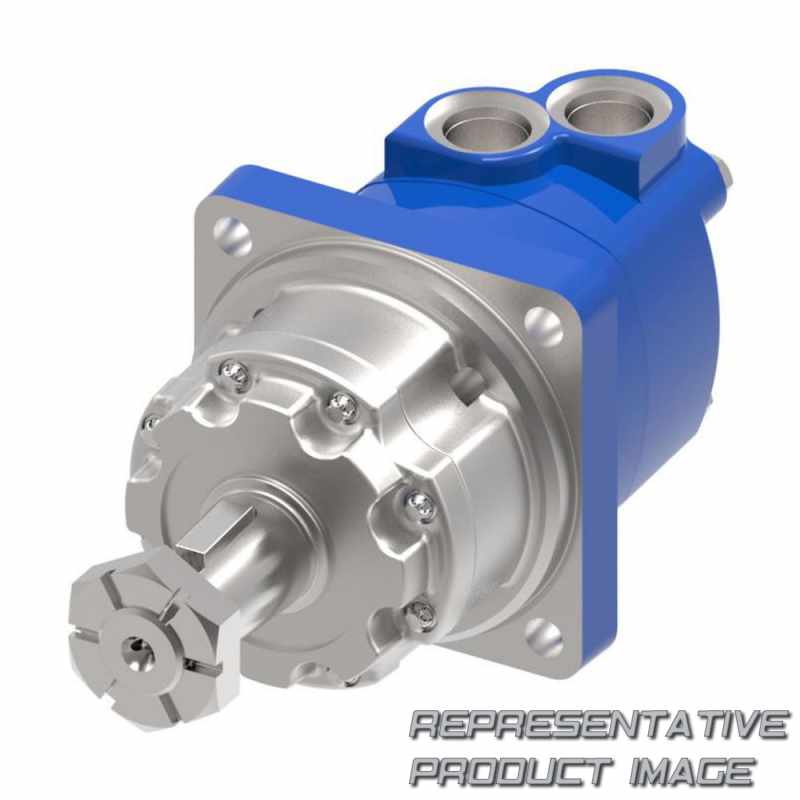

| motors | 4000 series; wheel mount motor | ||
| Baureihe | 04 : 4000 series | ||
| Mounting type | ad : wheel, 4 bolt; 127.00 [5.000] pilot dia..500-13 unc-2b threaded holes on 147.62 [5.812] dia. bolt circle. | ||
| Anschlüsse | ab : 1.0625-12 un-2b sae o-ring ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | 00 : none |
| Produkt | m : motor | ||
| Schluckvolumen | 150 : 246.3 cm3/r [15.03 in3/r] | ||
| output shaft | 02 : 41.28 [1.625] dia. tapered with 11.112 [.4375] sq x 31.75 [1.250] straight key, 1.250-18unef-2a thread with slotted hex nut | ||
| case flow options | 01 : .5625-18 unf-2b sae o-ring port with shuttle | ||
| pressure/flow option | 00 : none | ||
| seal option | 4 : seal guard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | ad : primer low gloss black, bulk box option | ||
| design code | f : sixth |
