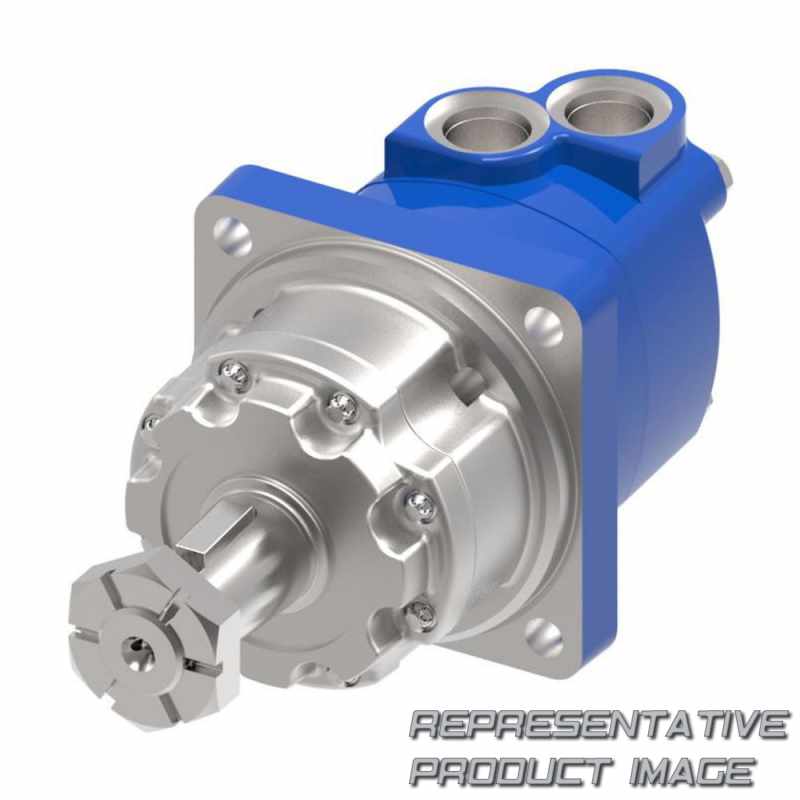

| motors | 4000 series; wheel mount motor | ||
| Baureihe | 04 : 4000 series | ||
| Mounting type | ac : wheel, 4 bolt; 139.70 [5.500] pilot dia.14.27 [.562] dia. holes on 165.10 [6.500] dia. bolt circle. | ||
| Anschlüsse | ab : 1.0625-12 un-2b sae o-ring ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 0 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | 00 : none |
| Produkt | m : motor | ||
| Schluckvolumen | 240 : 393.9 cm3/r [24.04 in3/r] | ||
| output shaft | 02 : 41.28 [1.625] dia. tapered with 11.112 [.4375] sq x 31.75 [1.250] straight key, 1.250-18unef-2a thread with slotted hex nut | ||
| case flow options | 02 : .4375-20 unf-2b sae o-ring port with check valve | ||
| pressure/flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | 00 : no paint, individual box | ||
| design code | f : sixth |
