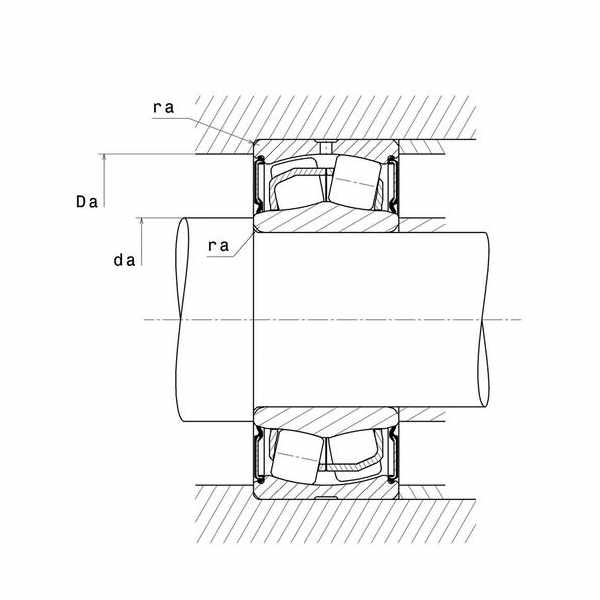

| ra max - Max shaft & housing fillet radius | 2 mm | ||
| db - Min diameter for Sleeve | 0 mm | ||
| da max - Max shoulder diameter IR | 0 mm | ||
| FTF - Characteristic cage frequency | 0,424 Hz | ||
| BPFO - Characteristic outer ring frequency | 7,634 Hz | ||
| Tmin - Min operating temperature | -20 °C | ||
| Y2 - Upper axial load coefficient | 4,57 | ||
| Y0 - Static axial load coefficient | 3 | ||
| Cu - Fatigue limit load | 38 kN | ||
| C - Dynamic load | 324 kN | ||

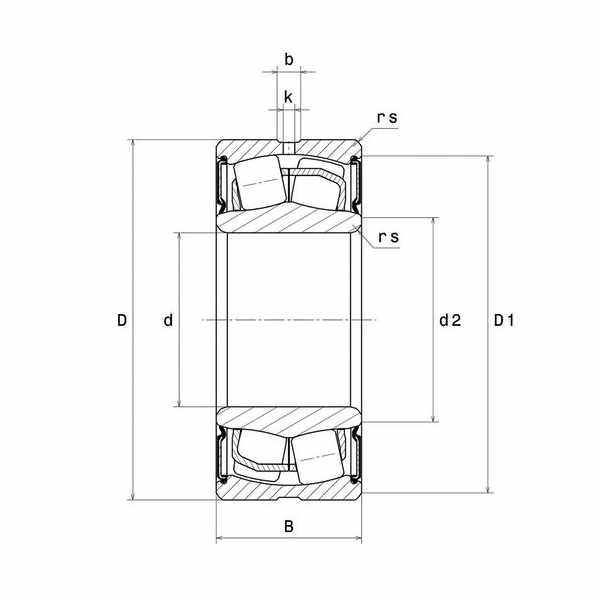

| k - Hole diameter | 3,5 mm | ||
| Number of lubrication holes | 3 | ||
| D1 - Inner diameter outer ring | 140,8 mm |
| Da max - Max shoulder diameter OR | 140,8 mm | ||
| da min - Min shoulder diameter IR | 96 mm | ||
| BSF - Characteristic rolling element frequency | 6,369 Hz | ||
| BPFI - Characteristic inner ring frequency | 10,366 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Mechanical Limit Speed | 1100 tr/min | ||
| Y1 - Lower axial load coefficient | 3,07 | ||
| e - Coefficient | 0,22 | ||
| C0 - Static load | 330 kN | ||
| Radial clearance class | CN | ||
| b - Groove width | 7,05 mm | ||
| rs - Min fillet radius | 2 mm | ||
| Brand | SNR |
