| ean | 4015081071517 | ||
| product height | 30 mm | ||
| Produktgewicht | .014 kg | ||
| certifications | ul 508 csa std. c22.2 no. 142 iec 6113-2 ul report applies to both us and canada certified by ul for use in canada iec/en 6113-2 ul file no.: e330994 ul csa class no.: none csa-c22.2 no. 142 ul category control no.: duxr, duxr7 ce |
||
| Nominal current | 1500 a | ||
| opening diameter | 22.5 mm | ||
| mechanical accessory type | other | ||
| 10.4 clearances and creepage distances | meets the product standard's requirements. | ||
| 10.2.5 lifting | does not apply, since the entire switchgear needs to be evaluated. | ||
| contact type | 1:1 | ||
| ambient storage temperature - min | -25 °c | ||
| 10.2.3.2 verification of resistance of insulating materials to normal heat | meets the product standard's requirements. | ||
| force for positive opening - min | 0 n | ||
| lifespan, mechanical | 750 insertion cycles | ||
| electrical accessory type | other | ||
| ambient operating temperature - max | 70 °c | ||
| nominal voltage - max | 50 v | ||
| 10.7 internal electrical circuits and connections | is the panel builder's responsibility. | ||
| connection to smartwire-dt | no | ||
| Mounting depth | 70 mm | ||
| number of poles | eight-pole | ||
| resistance | < 30 mΩ (volume resistance) | ||
| 10.2.2 corrosion resistance | meets the product standard's requirements. | ||
| 10.2.4 resistance to ultra-violet (uv) radiation | please enquire | ||
| limit value class | 5 | ||
| 10.13 mechanical function | the device meets the requirements, provided the information in the instruction leaflet (il) is observed. | ||
| 10.9.4 testing of enclosures made of insulating material | is the panel builder's responsibility. |
| product length/depth | 30 mm | ||
| product width | 30 mm | ||
| compliances | ce marked | ||

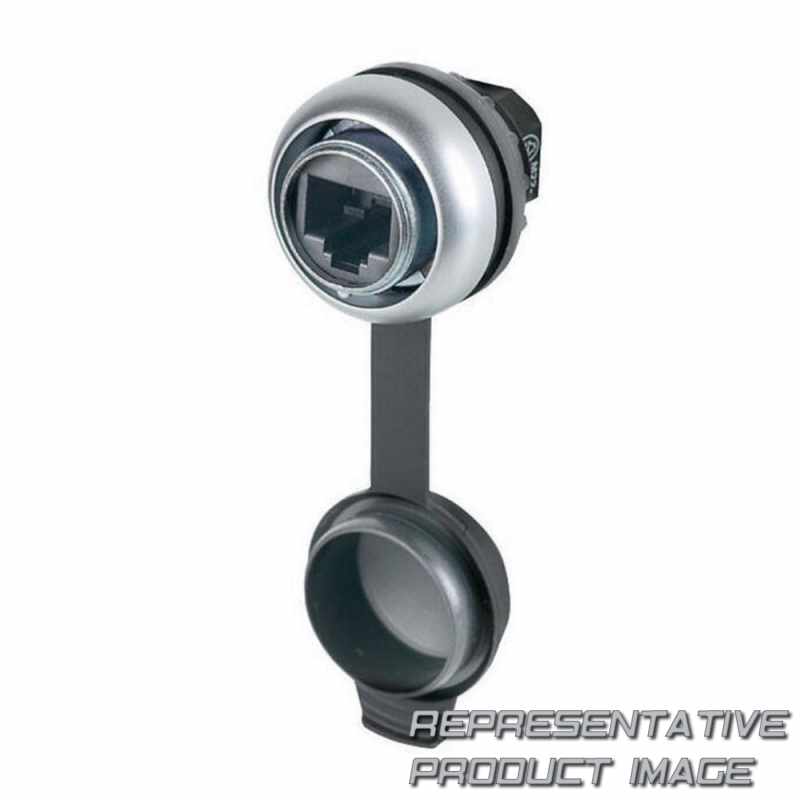

| catalog notes | rj45 socket, 8/8, cat. 5e | ||
| 10.11 short-circuit rating | is the panel builder's responsibility. the specifications for the switchgear must be observed. | ||
| rated operational voltage | 24 v ac | ||
| heat dissipation capacity pdiss | 0 w | ||
| 10.12 electromagnetic compatibility | is the panel builder's responsibility. the specifications for the switchgear must be observed. | ||
| Konstruktiver Aufbau | rj45 | ||
| 10.2.3.1 verification of thermal stability of enclosures | meets the product standard's requirements. | ||
| insulation resistance | ≥ 100 mΩ | ||
| 10.2.3.3 resist. of insul. mat. to abnormal heat/fire by internal elect. effects | meets the product standard's requirements. | ||
| 10.8 connections for external conductors | is the panel builder's responsibility. | ||
| 10.9.2 power-frequency electric strength | is the panel builder's responsibility. | ||
| Schutzart | ip65 (with closed cover) ip20 (with plug connected) nema 12 (with closed cover) |
||
| ambient storage temperature - max | 80 °c | ||
| bezel color | titanium | ||
| 10.10 temperature rise | the panel builder is responsible for the temperature rise calculation. eaton will provide heat dissipation data for the devices. | ||
| Material | titanium front ring | ||
| 10.9.3 impulse withstand voltage | is the panel builder's responsibility. | ||
| contact material | cusn, gold-plated | ||
| ambient operating temperature - min | -25 °c | ||
| 10.6 incorporation of switching devices and components | does not apply, since the entire switchgear needs to be evaluated. | ||
| 10.2.7 inscriptions | meets the product standard's requirements. | ||
| 10.5 protection against electric shock | does not apply, since the entire switchgear needs to be evaluated. | ||
| 10.2.6 mechanical impact | does not apply, since the entire switchgear needs to be evaluated. | ||
| 10.3 degree of protection of assemblies | does not apply, since the entire switchgear needs to be evaluated. |
