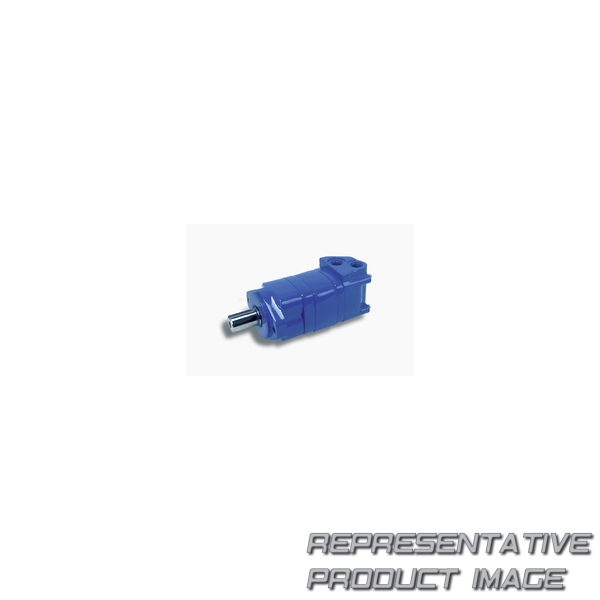

| motors | 2000 series; standard mount motor | ||
| Baureihe | 02 : 2000 series | ||
| Mounting type | ac : standard, 2 bolt; 82.6 [3.25] pilot dia. 13.59 [.535] dia. holes on 106.4 [4.19] dia. bolt circle. sae a | ||
| Anschlüsse | ag : g 1/2 bsp straight thd ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 1 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | aa : none |
| Produkt | m : motor | ||
| Schluckvolumen | 096 : 158.1 cm3/r [ 9.65 in3/r] | ||
| output shaft | 05 : 25.40 [1.000] dia. 6b spline per sae j499 with .250-20unc-2b thread in end, 22.76 [.896] minimum full spline length | ||
| case flow option | 02 : g 1/4 bsp straight thd port | ||
| pressure flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | aa : no paint, individual box | ||
| design code | f : sixth |
