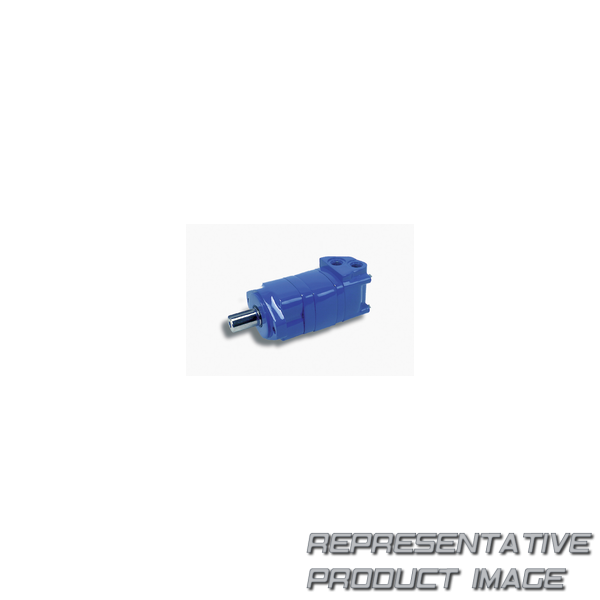

| motors | 2000 series; standard mount motor | ||
| Baureihe | 02 : 2000 series | ||
| Mounting type | ac : standard, 2 bolt; 82.6 [3.25] pilot dia. 13.59 [.535] dia. holes on 106.4 [4.19] dia. bolt circle. sae a | ||
| Anschlüsse | aa : .875-14 unf-2b sae o-ring ports - staggered ports | ||
| low pressure relief | 0 : none | ||
| geroler option | 1 : standard | ||
| accessories | 00 : none | ||
| special features (assembly) | 00 : none | ||
| customer identification | aa : none |
| Produkt | m : motor | ||
| Schluckvolumen | 119 : 194.8 cm3/r [11.89 in3/r] | ||
| output shaft | 04 : 31.75 [1.250] dia. flat root side fit, 14 tooth, 12/24 dp 30 deg. involute spline with .375-16 unc-2b thread in end, 33.0 [1.30] minimum full spline length | ||
| case flow option | 01 : .4375-20 unf-2b sae o-ring port | ||
| pressure flow option | 00 : none | ||
| seal option | 0 : standard | ||
| special features (hardware) | 00 : none | ||
| paint/packaging | aa : no paint, individual box | ||
| design code | f : sixth |
