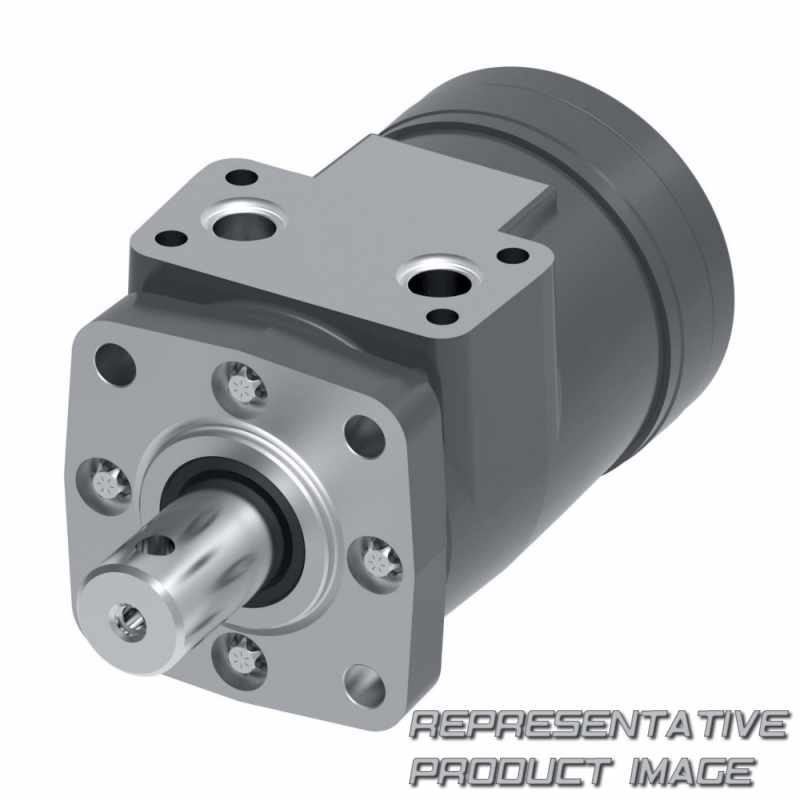

| motors | h motor | ||
| Baureihe | h0 : h series motor | ||
| Mounting type | ba : 4 bolt std - 44.40 [1.748] dia. x 3.05 [.120] pilot, .375-16 unc-2b mounting holes on 82.55 [3.250] dia. b.c.(no pilot with extreme duty seal) | ||
| port type | ac : manifold ports (.3125-18 unc-2b mounting holes) | ||
| gerotor options | 0 : none | ||
| seal options | 00 : standard seals | ||
| valve options | 00 : none | ||
| special assembly instructions | 0 : none | ||
| customer id./nameplate options | 00 : none specified |
| Produkt | m : motor | ||
| Schluckvolumen | 059 : 96 cm3/r [5.9 in3/r] | ||
| output shaft | 07 : 25.4 [1.00] dia. straight, 8.03 [.316] dia. crosshole 11.2 [.44] from end, 5.6 [.22] extra length | ||
| case flow options | 00 : none specified | ||
| shaft options | 0 : none | ||
| speed sensor options | 00 : none | ||
| special features (hardware) | 00 : none specified | ||
| paint/packaging options | aa : primer low gloss black | ||
| design code | j : nine (9) |
