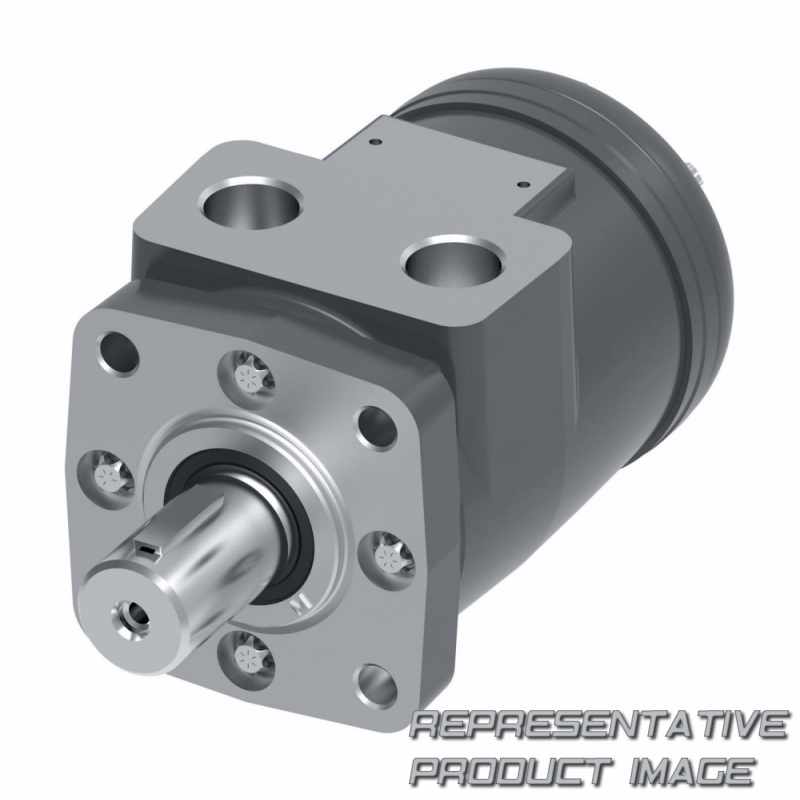

| motors | h motor | ||
| Baureihe | h0 : h series motor | ||
| Mounting type | fa : 4 bolt std - 44.40 [1.748] dia. x 3.05 [.120] pilot, m10 x 1.5-6h mounting holes on 82.55 [3.250] dia. b.c. | ||
| port type | af : g 1/2 bsp straight thread ports | ||
| gerotor options | 0 : none | ||
| seal options | 00 : standard seals | ||
| valve options | 00 : none | ||
| special assembly instructions | 0 : none | ||
| customer id./nameplate options | 00 : none specified |
| Produkt | m : motor | ||
| Schluckvolumen | 028 : 46 cm3/r [2.8 in3/r] | ||
| output shaft | 24 : 25.00 [.984] dia. straight, 8.00 [.315] key, m8 x 1.25-6h hole in shaft end | ||
| case flow options | 02 : g 1/4 bsp straight thd port (end cap) | ||
| shaft options | 0 : none | ||
| speed sensor options | 00 : none | ||
| special features (hardware) | 00 : none specified | ||
| paint/packaging options | aa : primer low gloss black | ||
| design code | j : nine (9) |
