| Diameter | 80 mm | ||
| magnetic piston | with magnetic piston | ||
| frame size | trr-80 | ||
| theoretical torque at | 6,3 bar | ||
| Drehrichtung | counterclockwise | ||
| theoretical torque | 54 nm | ||
| Dämpfungswinkel | 56 ° | ||
| angle of rotation min. | 0 ° | ||
| tolerance in 0° position not under pressure min. | -2 ° | ||
| working pressure min. | 2 bar | ||
| min. ambient temperature | -20 °c | ||
| min. medium temperature | -20 °c |
| compressed air connection | g 3/8 | ||

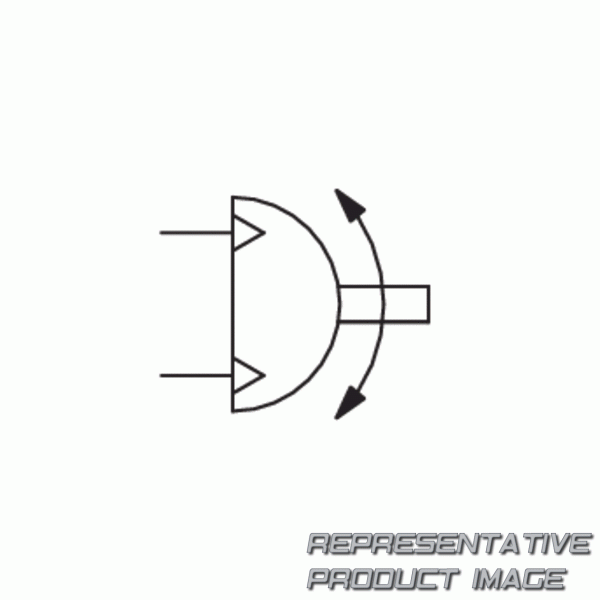

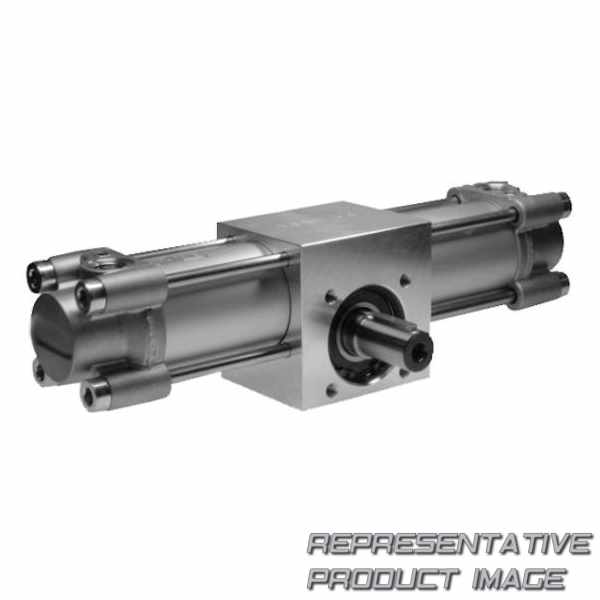

| rotary compact module version | double piston with rack | ||
| axis diameter | 30 mm | ||
| rotation angle tolerance | 0° / +4° | ||
| max. play (radial) | 0.9 ° | ||
| Dämpfung | adjustable | ||
| stroke/10° angle of rotation | 3.9 mm | ||
| angle of rotation max. | 180 ° | ||
| tolerance in 0° position not under pressure max. | 2 ° | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c |
