| activation | mechanical | ||

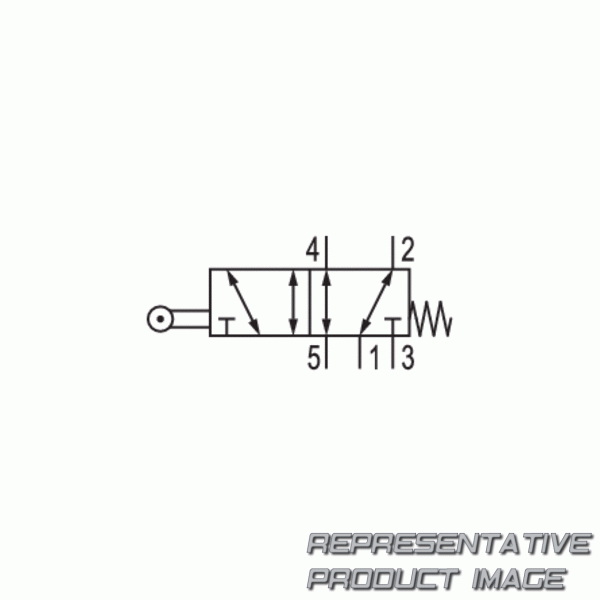

| switching principle | 5/2 | ||
| working pressure min. | -0.95 bar | ||
| actuating control | single solenoid | ||
| Dichtprinzip | metal/metal sealing | ||
| plate connection | pipe connection | ||
| actuating force min. | 6.5 n | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||
| oil content of compressed air min. | 5 mg/m³ | ||
| max. particle size | 5 µm | ||
| compressed air connection input | g 1/8 | ||
| mounting screw | m4 with hexagon socket |
| nominal flow qn | 280 l/min | ||
| compressed air connection output | g 1/8 | ||
| working pressure max | 10 bar | ||
| actuating element | roller | ||
| Typ | spool valve | ||
| lock type | not lockable | ||
| min. ambient temperature | -15 °c | ||
| min. medium temperature | -15 °c | ||
| Medium | compressed air | ||
| oil content of compressed air max. | 25 mg/m³ | ||
| compressed air connection type | internal thread | ||
| compressed air connection, exhaust | g 1/8 |
