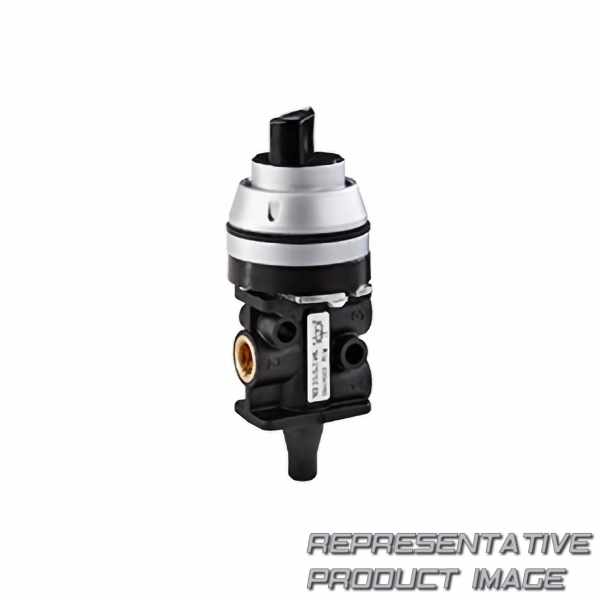

NORGREN 03041902 super x 3/2 manual valve

Name: 03041902 NORGREN
Brand: NORGREN
SKU: 782557-de-eur
Price: 320.68 EUR
Availability: InStock

320,68 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

max. Druck	-0.9 ... 10 bar
Dichtung	nitrile rubber

Gewicht	180g

body		pa6
data performance shelf life		10 years
flow flow dm3sec		5.58 dm3/sec
fluid temperature temperature celsius min to max range		0 ... 70 °c
mil spec		available on request
operating pressure psi pressure psi min to max range		-13 ... 145 psi
operating temperature temperature celsius min to max range		0 ... 70 °c
Anschlussgröße		g1/8
range		super x
valve operation		3/2

data performance b10 value number of cycles		1000000
eu country of origin		czechia
flow flow litresperminute		335 l/m
Medium		compressed air
operating pressure pressure bar min to max range		-0.9 ... 10 bar
operating temperature f temperature fahrenheit min to max range		32 ... 158 °f
weight weight kilogram		0.18 kg
product style		manual
Dichtungen		nitrile rubber
