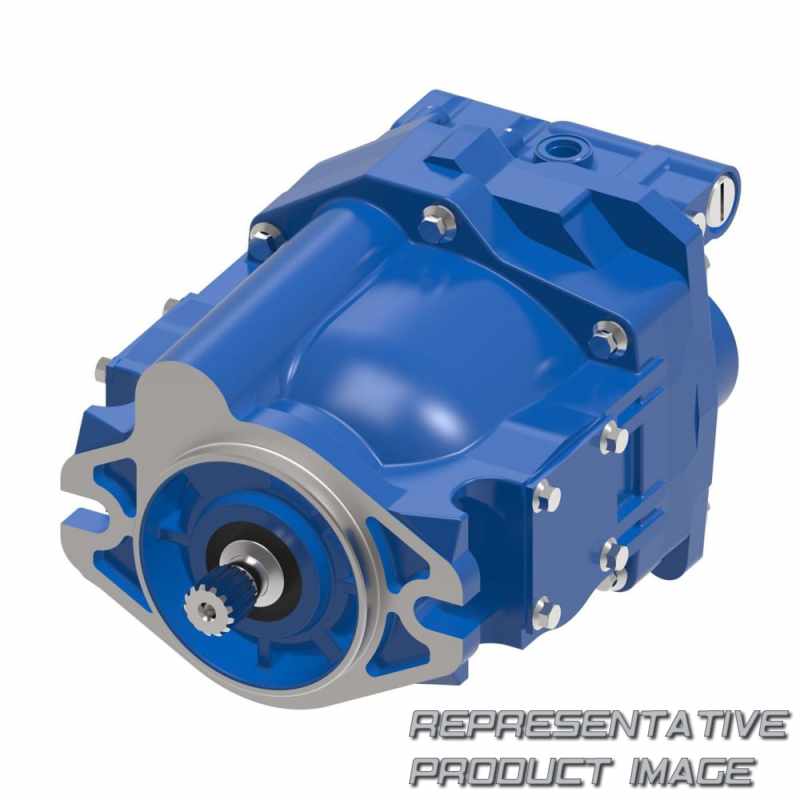

| pumps | pvq32-b2r-ss1s-21-c14d-1 2 | ||
| Schluckvolumen | 32 : 32.9 cc/rev (2.01 cir), 140 bar (2000 psi) | ||
| input shaft rotation | r : right-hand rotation (cw) | ||
| ports - type and location | -ss : inch o-ring boss, 1.3125" inlet and outlet, side port | ||
| Dichtungen | s : buna n, standard | ||
| control type | -c14 : pressure compenstor 138 bar | ||
| control design | -12 : o-ring seal design |
| Baureihe | pvq : inline piston pump, variable volume, quiet series | ||
| Befestigungsflansch | -b2 : flange sae j744 101-2 (sae-b) | ||
| thru-drive without coupling | no thru-drive | ||
| shafts - input | 1 : straight keyed, sae "a" modified 0.75 x 1.75 lg | ||
| pump design number | -21 : 221 | ||
| control options | d : maximum displacement adjustable stop (optional) | ||
| special features | none |
