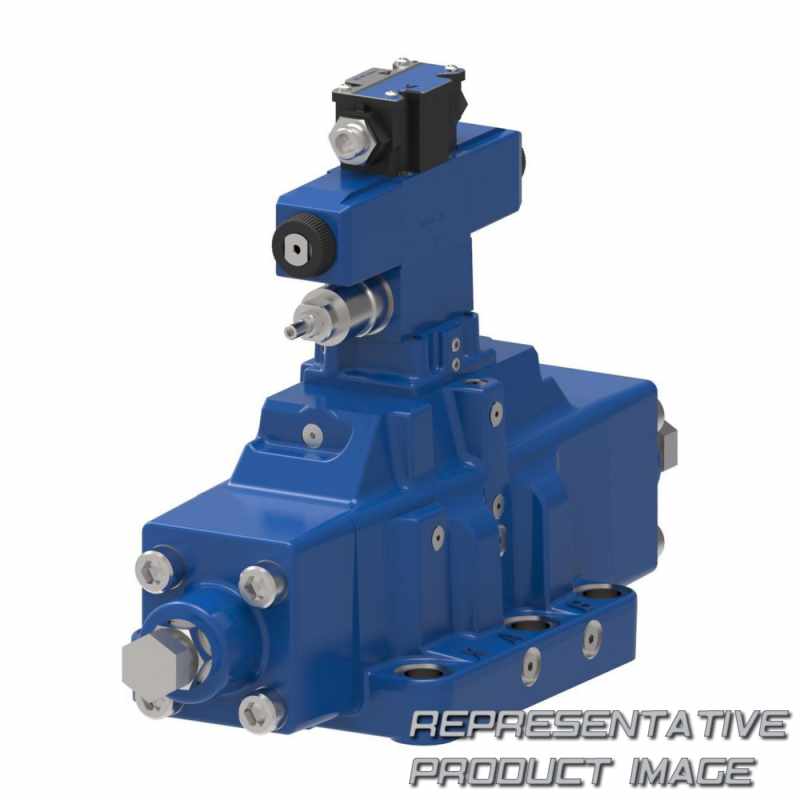

| industrial valves | dg5v-10-h-8c-vm-u-h-10 | ||
| valve type | dg5v : (dg5v) solenoid controlled, pilot operated dcv with 350 bar rating | ||
| pilot valve | -h : (h) high performance pilot valve (dg4v-3) | ||
| gauge port thread type | (0) gauge port 0.4375 - 20unf, sae thread | ||
| spring arrangement | c : (c) spring centered | ||
| Handhilfsbetätigung | (0) plain override in solenoid ends only | ||
| spool control | (0) not required | ||
| pilot supply | (0) internal pilot pressure | ||
| check valve | (0) not required | ||
| coil type | -u : (u) iso4400, din43650 connector | ||
| diode | (0) no diode | ||
| design code | -10 : (10) design number |
| Seal Type | (0) stadard buna-nitrile seals | ||
| interface | -10 : (10) iso 4401-10 interface, size 10 | ||
| reducer module | (0) not required | ||
| spool type | -8 : (8) tandem centre (p to t) | ||
| build orientation | (0) standard build | ||
| response | (0) standard low shock models | ||
| spool monitoring switch | (0) not required | ||
| pilot drain | (0) external pilot drain | ||
| solenoid identification | -vm : (vm) sol a is at port a and sol b is at port b | ||
| solenoid indicator light | (0) no solenoid indicator light | ||
| coil voltage | -h : (h) 24v dc 30 watt |
