| screw-in cartridge valves | rv5a-10-s-0-35/ valvula de alivio.. | ||
| size and flow | -10 : 114 l/min (30 gpm) | ||
| Einstellung | -s : screw | ||
| valve housing port | -0 : none | ||
| Druckeinstellung | * : maximum pressure setting |

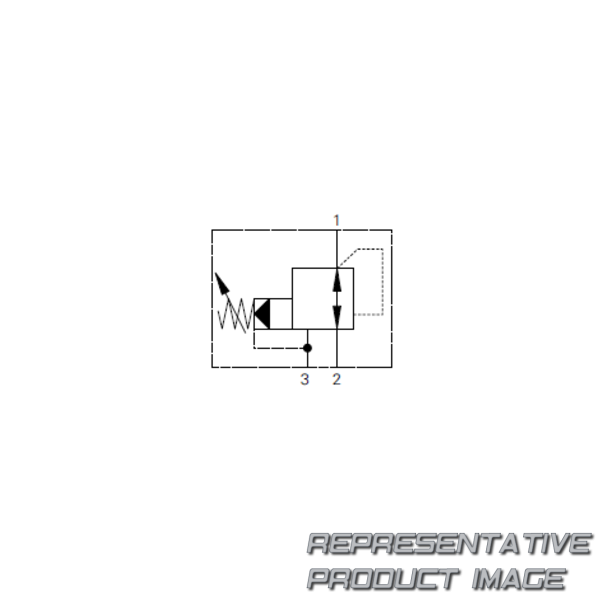

| pressure control | rv5a : relief valve, pilot operated high pressure, 1/2 thickness back-up ring on each side of o-ring (for cross port relief applications) | ||
| Seal Type | buna-n | ||
| valve housing material | aluminum | ||
| pressure range | -35/ : 17-240 bar (250-3500 lbf/in2) | ||
| special feature | none |
