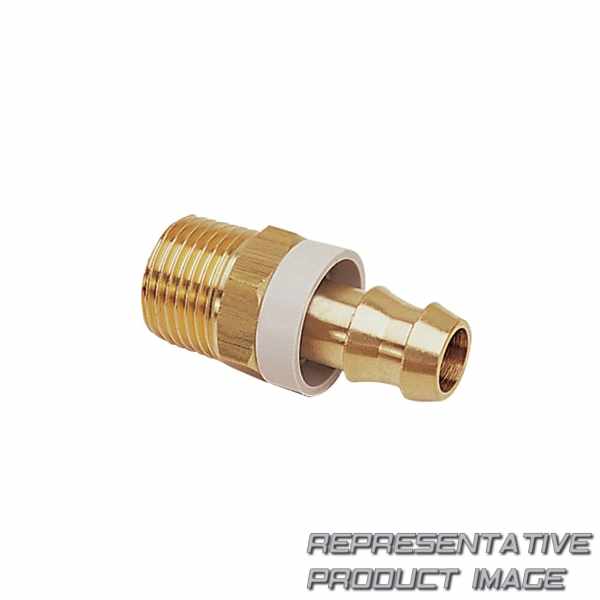

| Produktfamilie | self-fastening barb connectors for nbr hose | ||
| specifications met | industrial: di: 2002/95/ec (rohs), 2011/65/ec, di: 97/23/ec (ped), rg: 1907/2006 (reach), cnomo: e07.21.115n | ||
| industry application | pneumatics, cooling, automotive process, lubrication, fluid transmission, packaging, industrial machinery | ||
| quantity per box | 10 | ||
| Minimale Betriebstemperatur | -20 °c | ||
| body material | brass | ||
| connection thread size | r1/4 |
| shape | self-fastening barb connector male | ||
| media | coolants, compressed air | ||
| Gewicht | 0,022 kg | ||
| Maximale Betriebstemperatur | 104 °c | ||
| maximum operating pressure | 20 bar | ||
| tube outside diameter | 16 mm | ||
| tube inside diameter | 9, 5 mm |
