UCPAE206N SNR

SNR
Bearings
Housings, Inserts & Mounted Bearings
Mounted Units
UCPAE206N

SNR UCPAE206N

26.20 € (vat. excl.) ~~52.40 €~~ -50%

Limited stock only available on quotation

Specifications

Width	38,1
Inner Diameter	30mm

Weight	920g

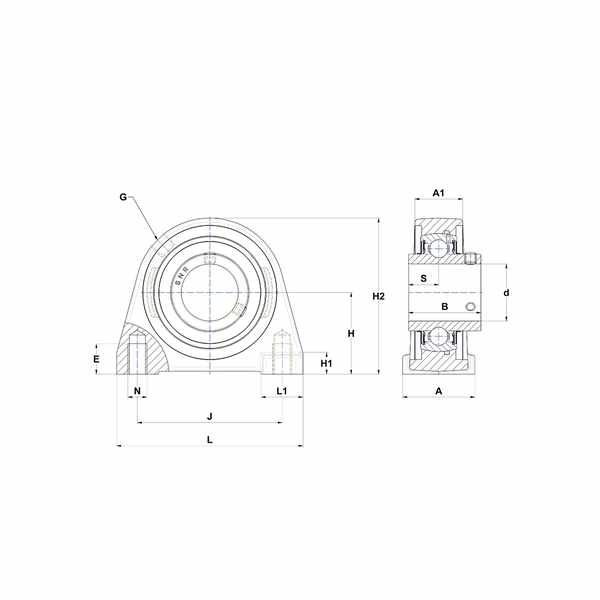

Technical data

Recommended tightening torque for set screw		5,5 N-m
Operating temperature min.		-20 °C
C - Dynamic load rating		19,5 kN
N - Mounting hole dimension		M10
L - Housing length		98 mm
H2 - Housing height		82 mm
H - Distance mounting base to centerline spheric. seating diam.		42,9 mm
E - Mounting hole thread depth		12,5 mm
A - Housing width		38 mm

Operating temperature max.		100 °C
C0 - Static load rating		11,2 kN
S - Dist. cent. of raceway to face IR on side opp. lock. device		15,9 mm
L1 - Housing foot length		22 mm
J - Mounting holes distance		76,2 mm
H1 - Housing foot height		11 mm
G - Grease fitting		R1/8"
A1 - Housing top width		25 mm
Brand		SNR
