| Recommended tightening torque for set screw | 5,5 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 19,5 kN | ||

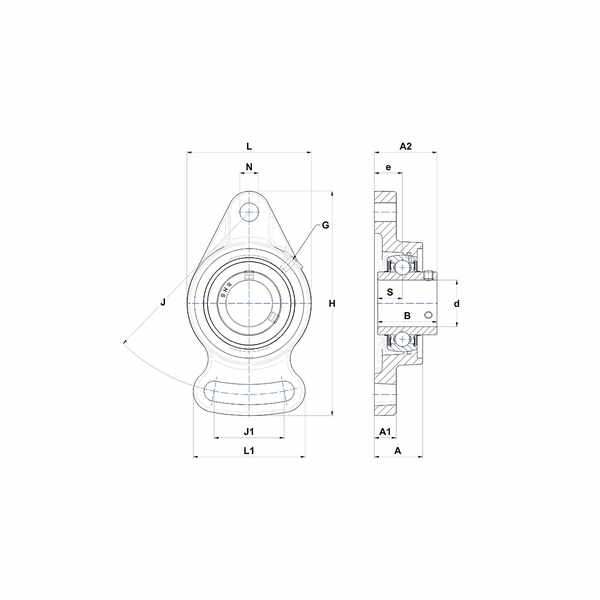

| N - Mounting hole dimension | 12 mm | ||
| L - Housing width / diameter | 80 mm | ||
| J - Mounting holes distance | 117 mm | ||
| G - Grease fitting | M6x1 | ||
| A2 - Total height from mounting surface | 40,2 mm | ||
| A - Housing height | 31 mm |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 11,2 kN | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 15,9 mm | ||
| L1 - Housing width at slotted area | 72 mm | ||
| J1 - Center distance of slotted hole | 58 mm | ||
| H - Housing length, width or diameter | 144 mm | ||
| e - Distance mounting surface to bearing center | 18 mm | ||
| A1 - Housing foot height / flange height | 14 mm | ||
| Brand | SNR |
