| Recommended tightening torque for set screw | 8,3 N-m | ||
| Operating temperature min. | -20 °C | ||
| C - Dynamic load rating | 22,8 kN | ||

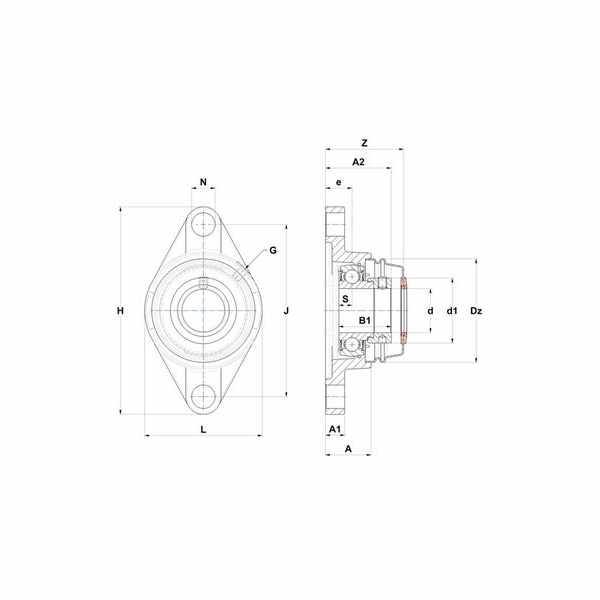

| S - Dist. cent. of raceway to face IR on side opp. lock. device | 9 mm | ||
| L - Housing width / diameter | 100 mm | ||
| H - Housing length, width or diameter | 172 mm | ||
| e - Distance mounting surface to bearing center | 21 mm | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 60,3 mm | ||
| A2 - Total height from mounting surface | 55,7 mm | ||
| A - Housing height | 36 mm |
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 18,2 kN | ||
| Z - Width over covers | 60,5 mm | ||
| N - Mounting hole dimension | 16 mm | ||
| J - Mounting holes distance | 144 mm | ||
| G - Grease fitting | M6x1 | ||
| Dz - Outer diameter of cover | 88 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 43,7 mm | ||
| A1 - Housing foot height / flange height | 15 mm | ||
| Brand | SNR |
