| Brand | SNR | ||

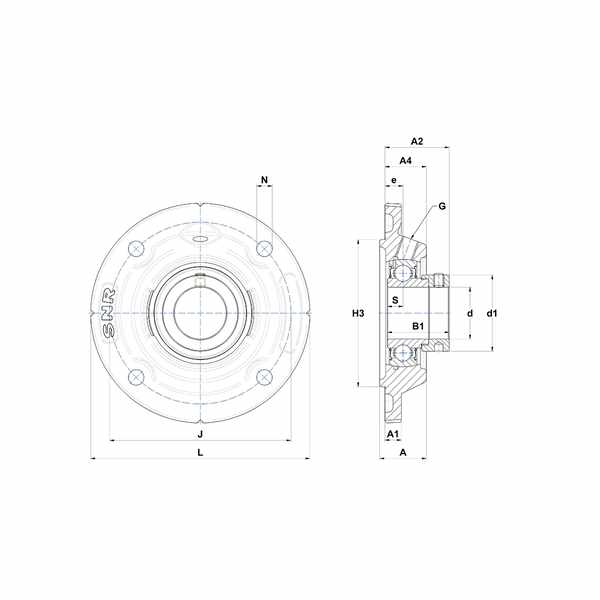

| A1 - Housing foot height / flange height | 11,5 mm | ||
| A4 - Housing height from mounting surface | 27 mm | ||
| d1 - Outer dia of eccent. Lock. collar / nut of adapter sleeve | 58 mm | ||
| G - Grease fitting | R1/8" | ||
| J - Mounting holes distance | 120 mm | ||
| N - Mounting hole dimension | 11,5 mm | ||
| C - Dynamic load rating | 29,6 kN | ||
| Operating temperature min. | -20 °C | ||
| Recommended tightening torque for set screw | 11,5 N-m |
| A - Housing height | 31 mm | ||
| A2 - Total height from mounting surface | 44,2 mm | ||
| B1 - Overall width IR (with eccent. locking collar/adapt. sleeve) | 43,7 mm | ||
| e - Distance mounting surface to bearing center | 11,5 mm | ||
| H3 - Centering dia | 100 mm | ||
| L - Housing width / diameter | 145 mm | ||
| S - Dist. cent. of raceway to face IR on side opp. lock. device | 11 mm | ||
| C0 - Static load rating | 18,2 kN | ||
| Operating temperature max. | 100 °C |
