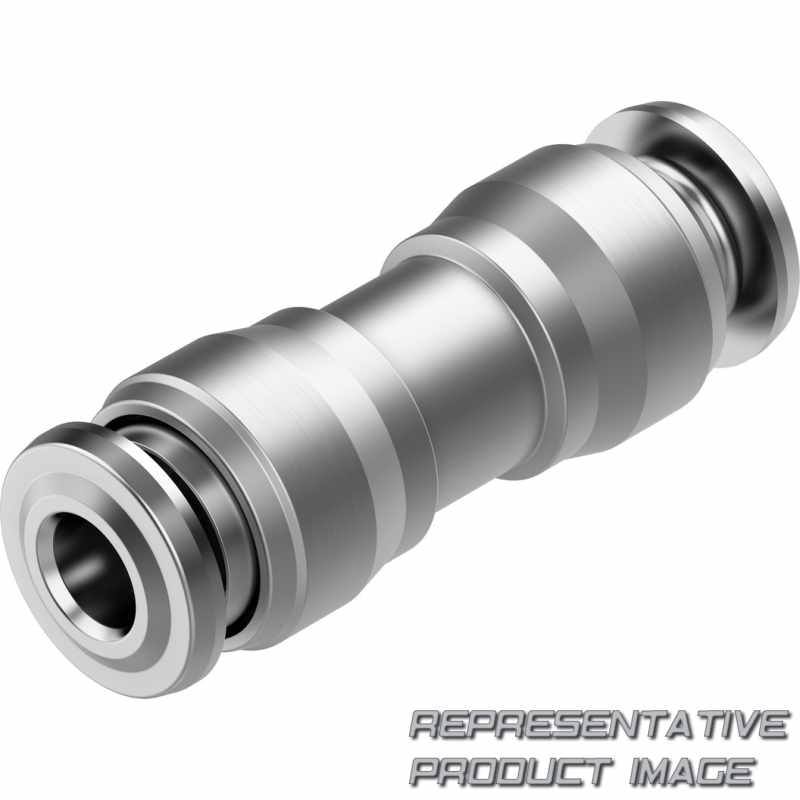

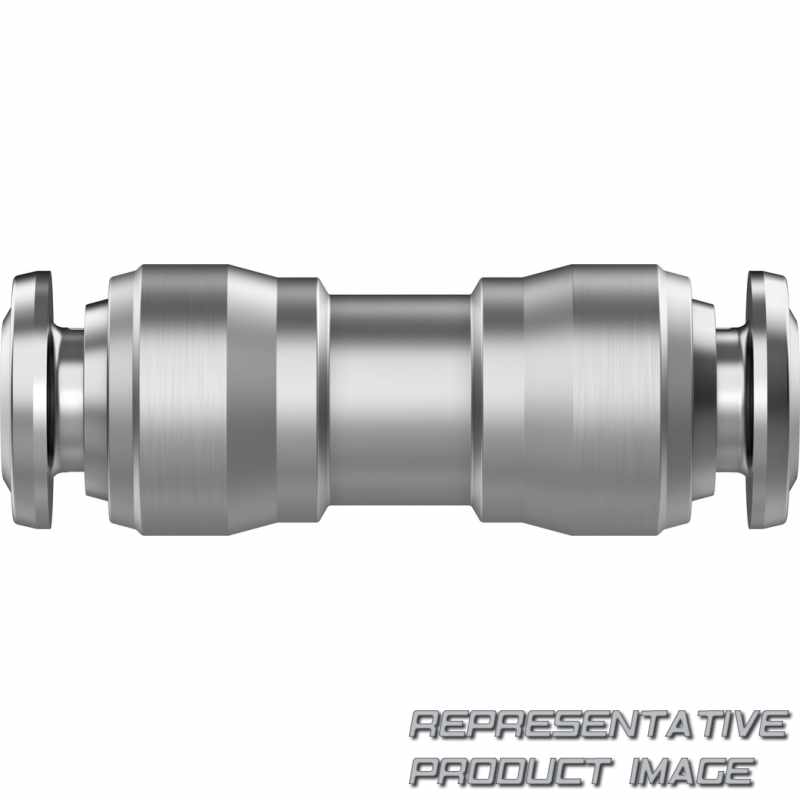

FESTO 8085697 plug

Name: 8085697 FESTO
Brand: FESTO
SKU: 676590-en-eur
Price: 23.94 EUR
Availability: InStock

NPQR-D-Q4-E

23.94 €

1 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection 1 (Q4)	Push-in connector 4 mm
Pneumatic connection 2 (E)	Same size as connection 1

Thrust ring material		PPSU
Material tubing seal		FPM
Guard ring material		High-alloy stainless steel
Note on materials		RoHS-compliant
Pneumatic connection, port 1		For tubing outer diameter of 4 mm
Ambient temperature		-20 °C ... 150 °C
Corrosion resistance class CRC		4 - Very high corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Operating pressure complete temperature range		-0,95 bar ... 16 bar
Design		Push-pull principle
Mounting position		optional
Nominal size		3 mm

Material tubing clamp component		High-alloy stainless steel
Material release ring		High-alloy stainless steel
Material housing		High-alloy stainless steel
Pneumatic connection, port 2		For tubing outside diameter of 4 mm
Product weight		9,8 g
Suitable for use with food		See declaration of conformity NSF/ANSI 169
Note on operating and pilot medium		Lubricated operation possible
Certificate issuing authority		NSF C0556009
Symbol		00997424
Size of pack		1
Tubing insertion depth		14 mm
Size		Standard
