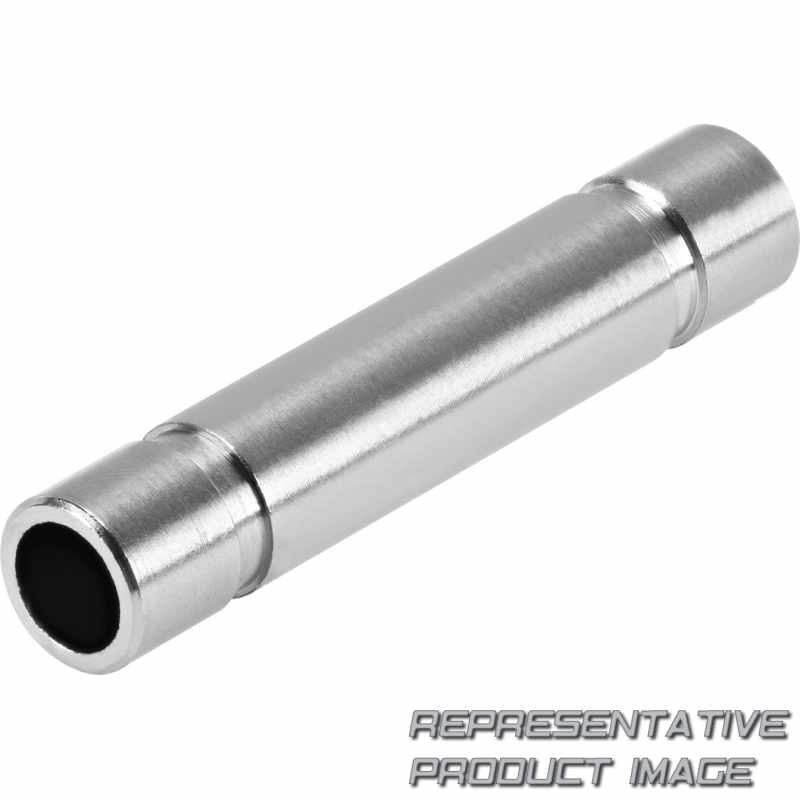

FESTO 578319 push-in sleeve

Name: 578319 FESTO
Brand: FESTO
SKU: 661149-en-eur
Price: 4.75 EUR
Availability: InStock

NPQH-D-S8-E-P10

4.75 €

11 pcs. with 1 to 3 days delivery to United States

Specifications

Material release ring		Nickel-plated brass
Note on materials		RoHS-compliant
Pneumatic connection, port 1		Push-in sleeve QS-8
Ambient temperature		0 °C ... 150 °C
Corrosion resistance class CRC		3 - high corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Operating pressure complete temperature range		-0,95 bar ... 20 bar
Mounting position		optional
Size		Standard

Material housing		Nickel-plated brass
Pneumatic connection, port 2		Push-in sleeve QS-8
Product weight		7,6 g
Suitable for use with food		See supplementary material information NSF/ANSI 169
Note on operating and pilot medium		Lubricated operation possible
Certificate issuing authority		NSF C0523185
Size of pack		10
Nominal size		6 mm
