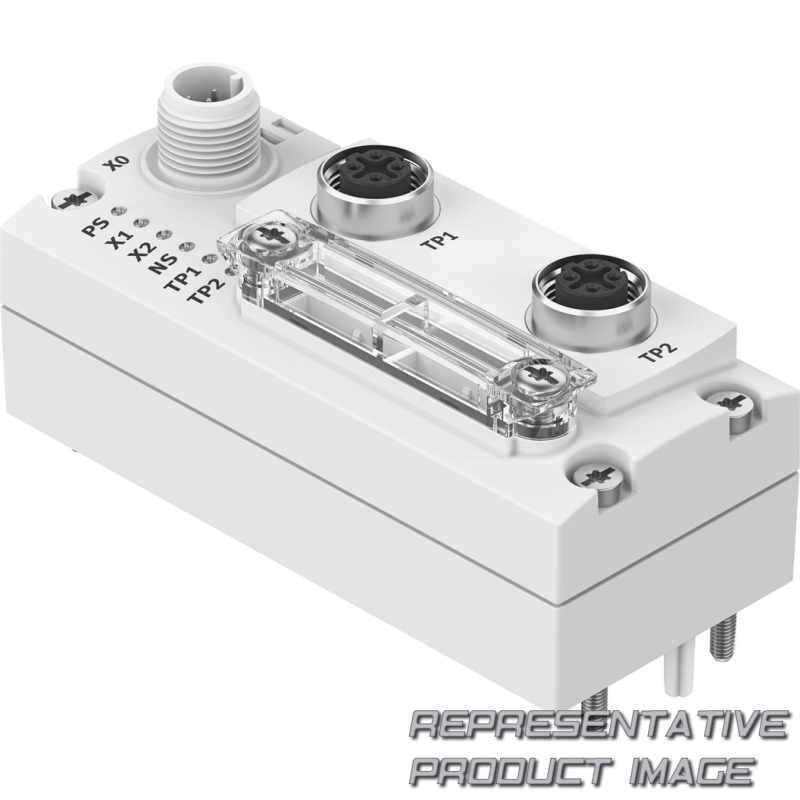

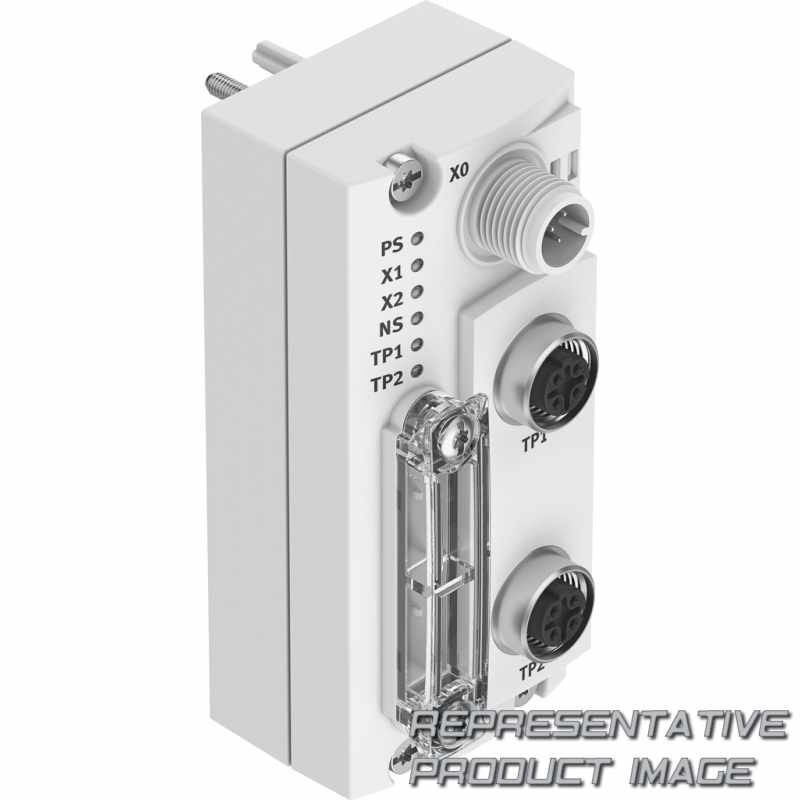

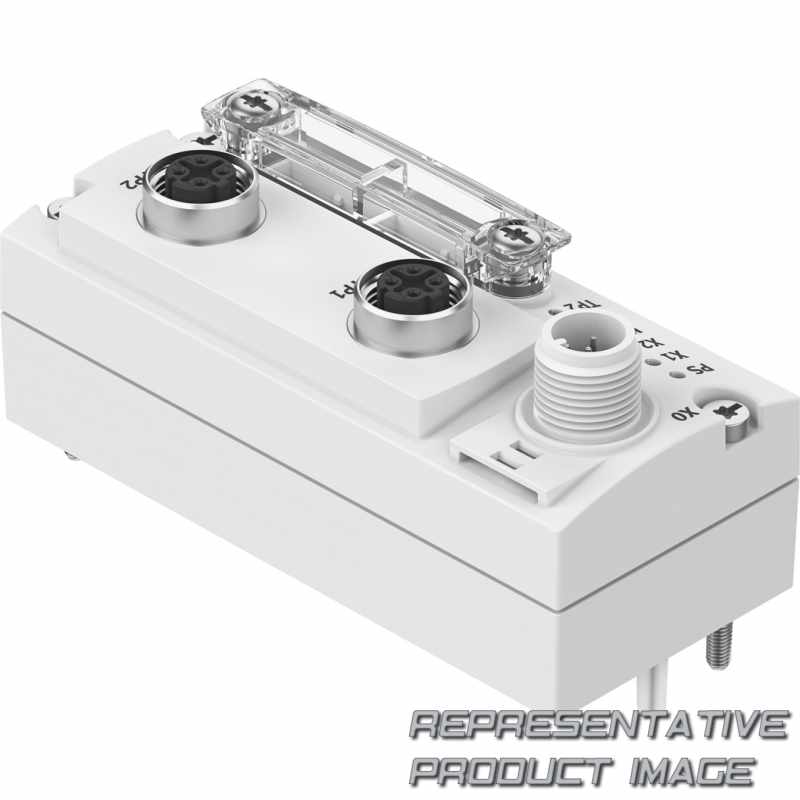

| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Storage temperature | -20 °C ... 70 °C | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| KC mark | KC-EMV | ||
| Max. power supply | 4 A | ||
| Nominal operating voltage DC | 24 V | ||
| LED display, bus-specific | NS: Network status TP1: Network active port 1 TP2: Network active port 2 | ||
| Operator controls | DIL switch | ||
| Parameterisation | Diagnostic behaviour Fail-safe and idle response | ||
| Max. address volume, outputs | 64 Byte | ||
| Internal cycle time | 1 ms per 1 byte of user data | ||
| Baud rate | 10/100 Mbit/s | ||
| Product weight | 98 g | ||
| Additional functions | AddressConflictDetection (ACD) Acyclic data access via "Explicit Message" EtherNet/IP Quickconnect IP addressing via DHCP, DIL switch, fieldbus or FFT Integrated switch Ring topology (DLR) SNMP Start-up parameterisation in plain text via fieldbus System status can be mapped using process data Web servers |
| Material housing | PA | ||
| Degree of protection | IP65 IP67 | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Approval | RCM trademark c UL us listed (OL) | ||
| Intern power consumption nominal operating voltage | Typ. 65 mA | ||
| Operational voltage range DC | 18 V ... 30 V | ||
| LED display, product-specific | PS: Operating voltage for electronics and load supply X1: System status of module at I-Port 1 X2: System status of module at I-Port 2 | ||
| Configuration support | EDS file | ||
| Diagnosis | Communication fault System diagnostics Undervoltage | ||
| Max. address volume, inputs | 64 Byte | ||
| Protocol | EtherNet/IP Modbus® TCP | ||
| Field bus interface | 2x socket, M12x1, 4-pin, D-coded | ||
| Dimensions (W x L x H) | 40 x 91 x 50 mm |
