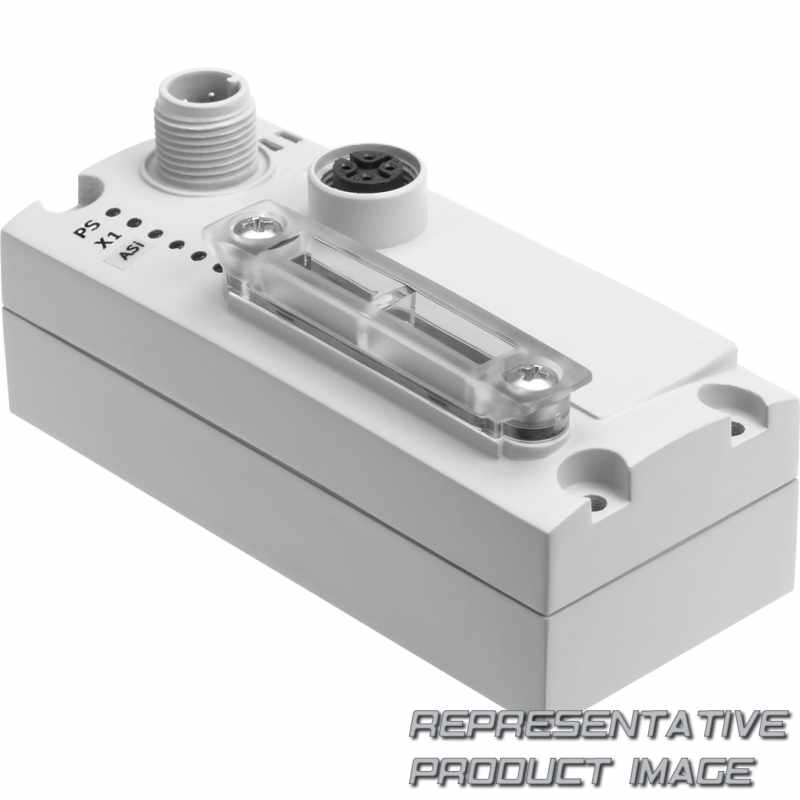

| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Degree of protection | IP65 IP67 | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Max. power supply | 4 A | ||
| Nominal operating voltage DC | 30 V | ||
| LED display, bus-specific | AS-i: AS-Interface mode | ||
| Operator controls | DIL switch | ||
| Parameterisation | Watchdog disable Watchdog enable | ||
| Max. address volume, outputs | 2 Byte | ||
| Internal cycle time | 10 ms | ||
| Fieldbus interface 2, number of pins/wires | 4 | ||
| Fieldbus interface 2, connection type | Socket | ||
| Fieldbus interface, connection pattern | 00995386 | ||
| Field bus, connection system | M12x1, A-coded according to EN 61076-2-101 | ||
| Fieldbus interface, function | Incoming bus connection Power supply | ||
| Fieldbus interface | AS-Interface | ||
| Product weight | 90 g | ||
| Grid dimension | 40 mm |
| Material housing | PA | ||
| Note on degree of protection | In assembled state Unused connections sealed | ||
| Storage temperature | -20 °C ... 70 °C | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Approval | c UL us listed (OL) | ||
| Intern power consumption nominal operating voltage | Typ. 50 mA | ||
| Operational voltage range DC | 20 V ... 31,6 V | ||
| LED display, product-specific | PS: Operating voltage for electronics and load supply X1: System status of module at I-Port 1 | ||
| Configuration support | None | ||
| Diagnosis | Communication fault System diagnostics Undervoltage | ||
| Max. address volume, inputs | 2 Byte | ||
| Fieldbus interface 2, connection pattern | 00995385 | ||
| Fieldbus interface 2, connection technology | M12x1, A-coded to EN 61076-2-101 | ||
| Fieldbus interface 2, function | Outgoing bus connection Power supply | ||
| Field bus, connection pattern | 4 | ||
| Field bus, connection type | Plugs | ||
| Field bus, protocol | AS-Interface | ||
| Protocol | AS-Interface | ||
| Type of mounting | On electrical interface On electrical sub-base | ||
| Dimensions (W x L x H) | 40 x 91 x 50 mm |
