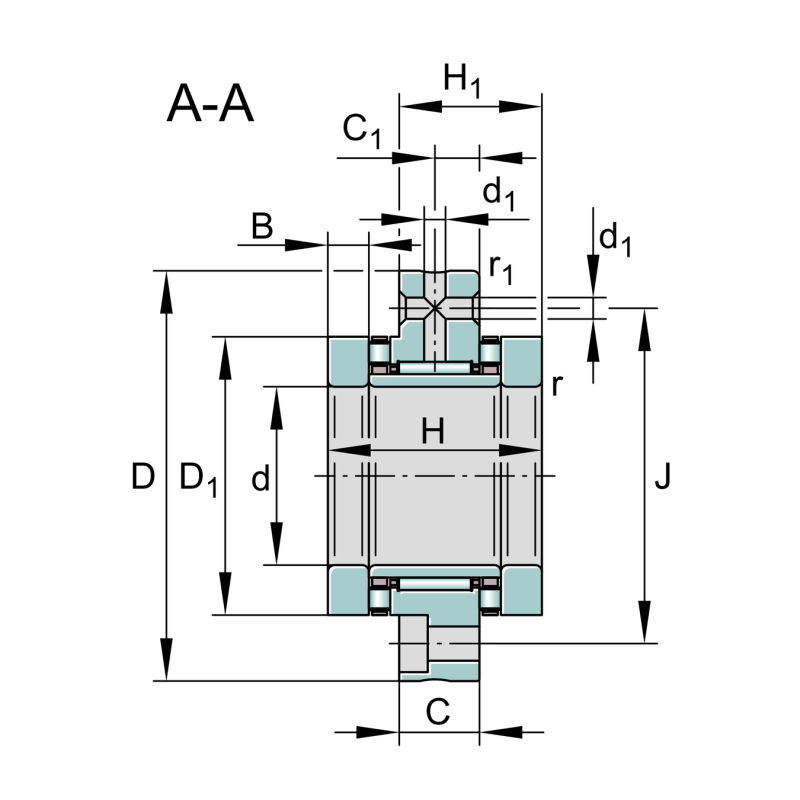

| Bore diameter | d | 15 | mm |
| Hight | H2 | 40 | mm |
| Basic static load rating, axial | C0a | 53,000 | |
| Basic static load rating, radial | C0r | 17,500 | |
| Fatigue load limit, radial | Cur | 2,650 | |
| Limiting speed for grease lubrication | nG Grease | 2,200 |
| Outside diameter | D | 60 | mm |
| Basic dynamic load rating, axial | Ca | 24,900 | |
| Basic dynamic load rating, radial | Cr | 13,000 | |
| Fatigue load limit, axial | Cua | 7,500 | |
| Limiting speed for oil lubrication | nG Oil | 8,500 | |
| Bearing friction torque | MRL | 0.26 | Nm |
| Maximum diameter of housing shoulder | Da max | 36 | mm |
| Minimum diameter shaft shoulder | da min | 28 | mm |
| Height outer ring over wave washer | H1 | 26 | mm |
| Distance to lubrication hole | Ca | 8 | mm |
| Width, inner ring | B | 7.50 | mm |
| Diameter lubrication hole | ds | 3.20 | mm |
| Number (screwing holes) | n | 6 |
| Width, outer ring | C | 14 | mm |
| Rip diameter shaft washer | d1 | 35 | mm |
| Minimum chamfer dimension | rmin | 0.60 | mm |

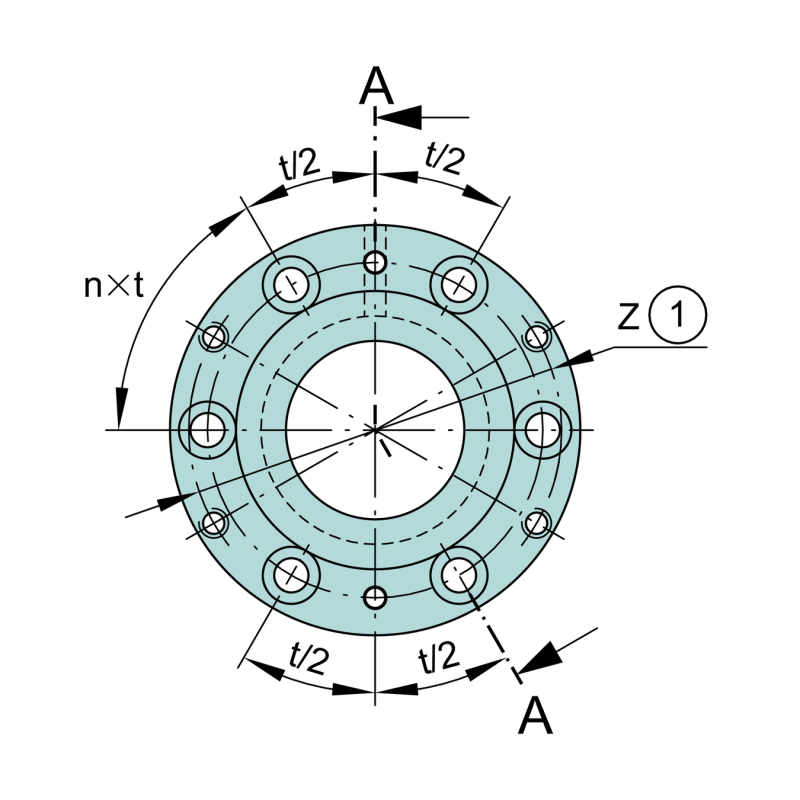

| Pitch circle diameter (holes) | J | 46 | mm |
| Split | n x t | 60 | ° |
| Manufacturer | Part Number |
|---|---|
| NADELLA | AXNBT 15 60 |
| Unitec | SRB1560F |
