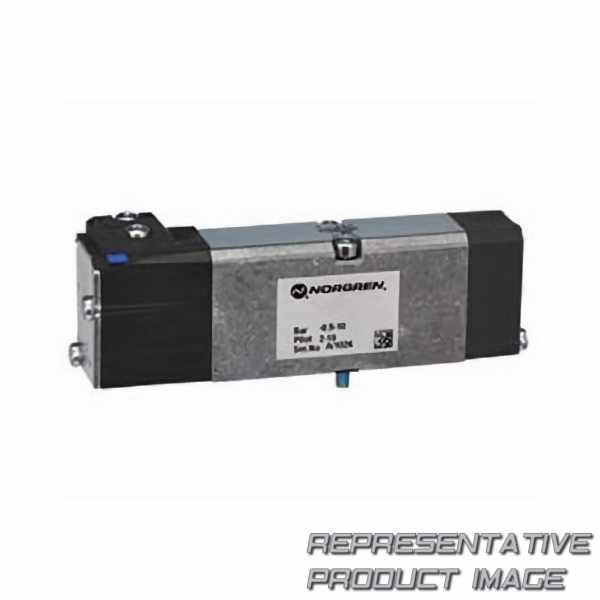

NORGREN V405511D-C313A mini iso valve - solenoid

Name: V405511D-C313A NORGREN
Brand: NORGREN
SKU: 780182-en-eur
Price: 204.1 EUR
Availability: InStock

204.10 € ~~253.21 €~~ -19%

available with 3 to 4 week lead time shipping to United States

Specifications

Actuation Type	solenoid pilot / solenoid pilot
Mounting Position	sub-base
max. pressure	2 ... 10 bar
supply voltage	24vdc

actuation		solenoid pilot / solenoid pilot
connector type		din 43 650 form c
data performance shelf life		3 years
flow flow dm3sec		9.53 dm3/sec
Manual override		push only
mil spec		available on request
nuts and screws		zinc plated steel
operating pressure psi pressure psi min to max range		29 ... 145 psi
operating temperature temperature celsius min to max range		-15 ... 50 °c
operator 14		solenoid
length length millimetre		110 mm
width length millimetre		35 mm
Port size		sub-base
range		v40
Series		mini iso valves
spool technology		glandless spool and sleeve
Standard		vdma 24 563
valve size length millimetre		18 mm

body		diecast aluminium
data performance b10 value number of cycles		60000000
eu country of origin		czechia
flow flow litresperminute		572 l/m
Medium		compressed air
mounting		sub-base
operating pressure pressure bar min to max range		2 ... 10 bar
operating temperature f temperature fahrenheit min to max range		5 ... 122 °f
operator 12		solenoid
height length millimetre		19 mm
weight weight kilogram		0.26 kg
pilot		internal
product style		sub-base
Seals		hnbr
solenoid power power watt		1.2 w
springs		stainless steel
valve operation		5/2
voltage		24vdc
