| Brand | snr | ||
| BRF - Rotational frequency – rolling element (60 rpm) | 2,033 Hz | ||
| BPFI - Over rolling frequency on inner (60 rpm) | 4,931 Hz | ||
| Recommended tightening torque for set screw | 3,5 N-m | ||
| Operating temperature max. | 100 °C | ||
| C0 - Static load rating | 4,78 kN | ||
| SW - Wrench size | 2,5 mm | ||

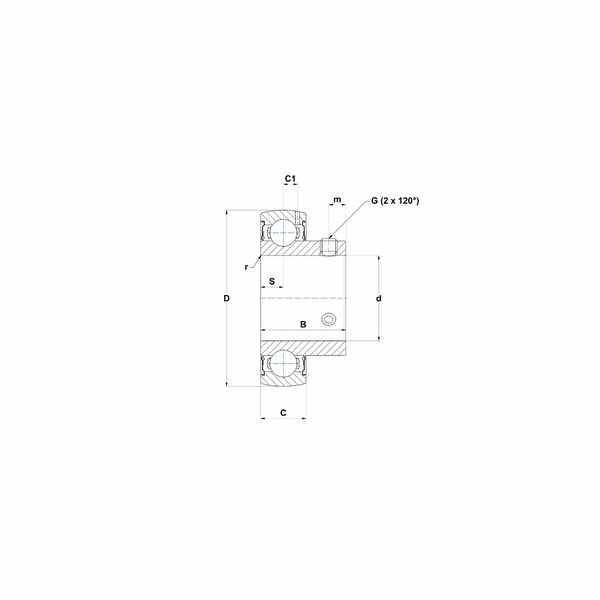

| S - Distance front side/bearing centre | 6 mm | ||
| m - Distance to set screw | 4 mm | ||
| D - Outer diameter of OR | 40 mm | ||
| C1 - Distance center of OR to center of lubrication zone | 3,6 mm | ||
| B - Width of Inner Ring | 22 mm |
| FTF - Rotational frequency - cage (60 rpm) | 0,384 Hz | ||
| BSF - Over rolling frequency on rolling element (60 rpm) | 4,066 Hz | ||
| BPFO - Over rolling frequency on outer ring (60 rpm) | 3,069 Hz | ||
| mass | 0,1 kg | ||
| Operating temperature min. | -40 °C | ||
| C - Dynamic load rating | 9,55 kN | ||
| f0 - Factor | 13.20 | ||
| r - Radius Inner Ring | 0.60 | ||
| G - Set screw size | M5x0,8 | ||
| d - Shaft diameter | 17 mm | ||
| C - Width of Outer Ring | 12 mm |
