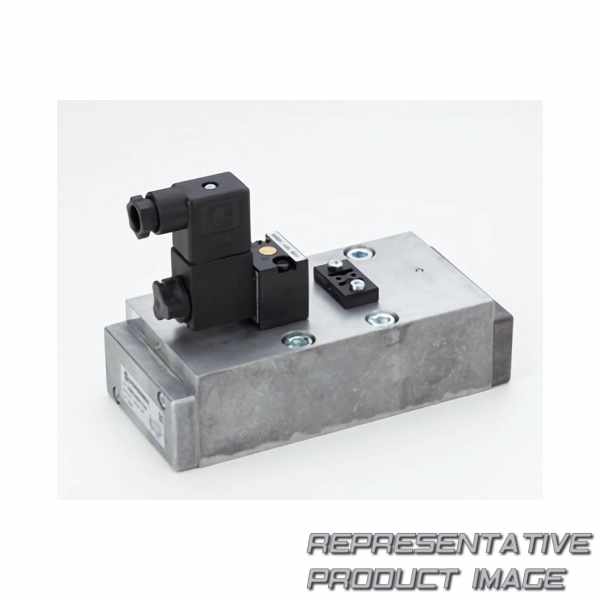

NORGREN UM/22456/123/61/13J iso valve - solenoid

Name: UM/22456/123/61/13J NORGREN
Brand: NORGREN
SKU: 778539-en-eur
Price: 994.32 EUR
Availability: SoldOut

994.32 € (vat. excl.) ~~1,674.35 €~~ -40%

Limited stock only available on quotation

Specifications

Actuation Type	solenoid pilot / solenoid pilot
Mounting Position	sub-base
max. pressure	2 ... 10 bar
supply voltage	24vdc

actuation		solenoid pilot / solenoid pilot
connector type		22mm industrial standard
data performance shelf life		10 years
flow flow dm3sec		94.33 dm3/sec
fluid temperature temperature celsius min to max range		-10 ... 50 °c
Manual override		push only
mil spec		available on request
operating pressure pressure bar min to max range		2 ... 10 bar
operating temperature f temperature fahrenheit min to max range		14 ... 122 °f
operator 12		solenoid
height length millimetre		75 mm
weight weight kilogram		1.32 kg
Port size		iso 4
range		um/22000
Series		iso star
Standard		vdma 24 345
voltage		24vdc

body		diecast aluminium
data performance b10 value number of cycles		5000000
eu country of origin		czechia
flow flow litresperminute		5660 l/m
iso size		iso #4
Medium		compressed air
mounting		sub-base
operating pressure psi pressure psi min to max range		29 ... 145 psi
operating temperature temperature celsius min to max range		-10 ... 50 °c
operator 14		solenoid
length length millimetre		180 mm
width length millimetre		83 mm
product style		sub-base
Seals		nitrile rubber
solenoid power power watt		2 w
valve operation		5/2
