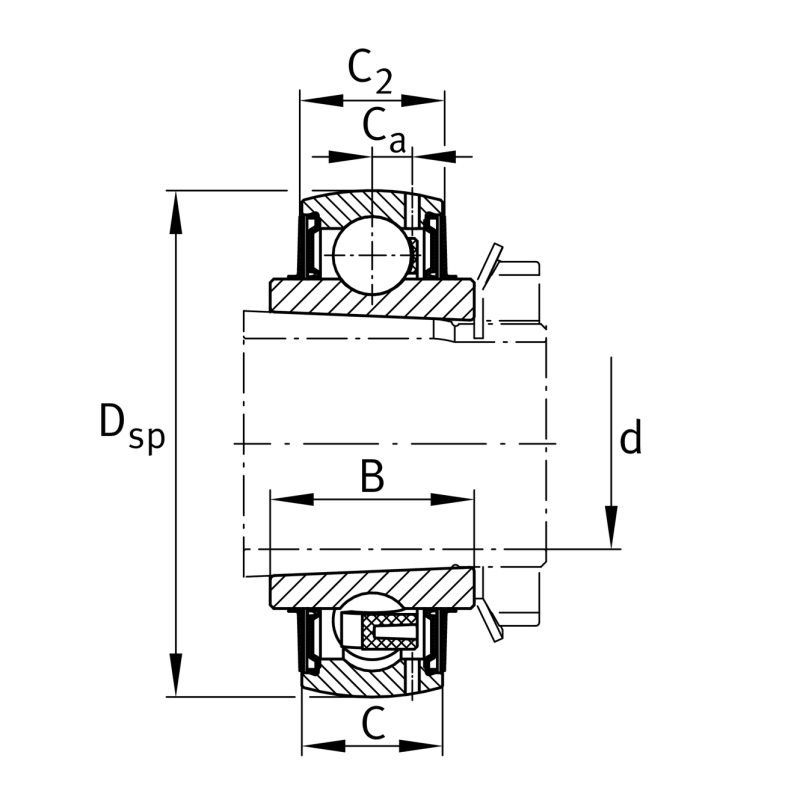

| Bore diameter | d | 25 | mm |
| Width | B | 26 | mm |
| Basic dynamic load rating, radial | Cr | 20,700 | |
| Fatigue load limit, radial | Cur | 590 | N |
| Outside diameter | D | 62 | mm |

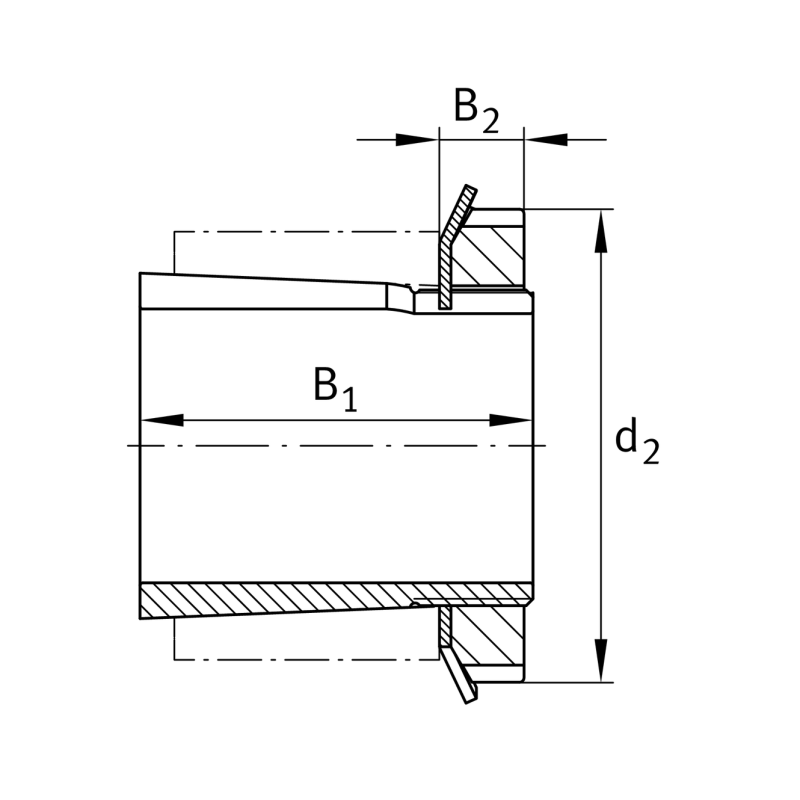

| Locking collar total width | B1 | 38 | mm |
| Basic static load rating, radial | C0r | 11,300 |
| Width, outer ring | C | 19 | mm |
| Distance to lubrication hole | Ca | 5 | mm |
| Width nut and lock | B2 | 8 | mm |
| Sealing total width | C2 | 19.60 | mm |
| Outside diameter locking collar/locknut | d3 | 45 | mm |
