| Angle between Set Screws | 120 º | ||
| Set Screw Size | M6×0.75 | ||

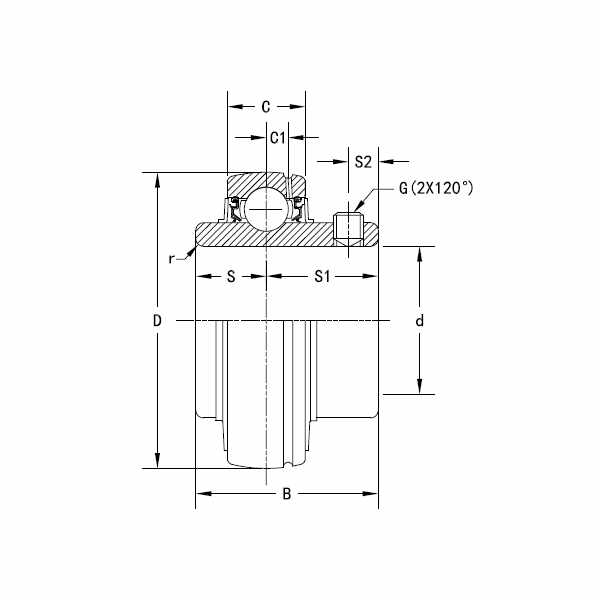

| Dimension S1 | 19.80 | mm | |
| Groove Position C1 | 4.50 | mm | |
| Outside Ring Width C | 17 | mm |
| Number of Set Screws | 2 | ||
| Set Screw Distance S2 | 5.50 | mm | |
| Center of Bearing from End S | 14.30 | mm | |
| Radius r | 1 | mm | |
| Outside Diameter D | 52 | mm |
| Locking Device | Set Screw Locking | ||
| Shaft Size d | 25 | mm | |
| Bore Type | Cylindrical bore |
| Weight | 0.20 | Kg | |
| Bearing Type | Ball Bearing |
