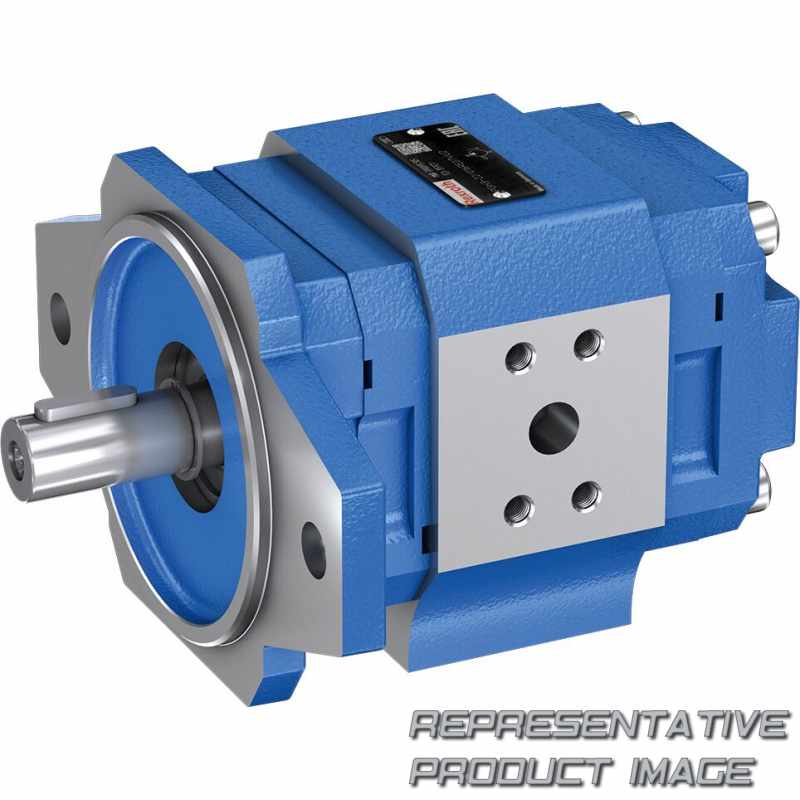

REXROTH R901243994 internal gear pump
PGH2-2X/005RE07WU2
1,950.95 €
Limited stock
only available on quotation
Specifications
- Frame size 2, 3
- Size 5 … 16
- Component series 2X
- Maximum operating pressure 350 bar
- Maximum displacement 16 cm³
| Series (PG) | Internal gear pump, fixed displacement, gap-compensated |
|---|---|
| Type (H) | High-pressure pump, peak pressure 350 bar |
| Frane sizes (2) | BG2 |
| Component Series (2X) | Component series 20 ... 29 (unchanged installation and connection dimensions) |
| Sizes (005) | NG5 |
| Directions of rotation (R) | Viewed on drive shaft clockwise |
|---|---|
| Drive shafts (E) | Cylindrical shaft with fitting key, DIN 6885 |
| Line connections (07) | Suction and pressure port: SAE flange connection according to ISO 6162-1 |
| Seals (W) | FKM seals with NBR shaft seal rings, suitable for HFC hydraulic fluids |
| Mounting flange (U2) | 2-hole mounting flange according to ISO 3019-1 |
