| dc operating voltage | 24 v | ||
| Display | led | ||
| max. vacuum level at p.opt | 85 % | ||
| max. suction capacity | 16.8 l/min | ||
| compressed air connection | Ø 4 | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| Medium | compressed air | ||
| min. medium temperature | 0 °c | ||
| min. ambient temperature | 0 °c | ||
| working pressure min. | 3 bar | ||
| with silencer | with silencer | ||

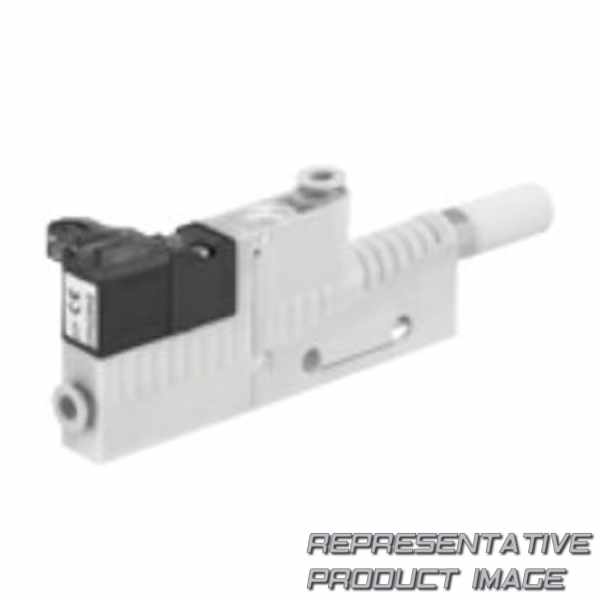

| Type | ejector |
| protection class according to en 60529:2000, without electrical connector | ip40 | ||
| sound pressure level intake effect | 65 db | ||
| air consumption at p.opt. | 24 l/min | ||
| vacuum connection+ | Ø 4 | ||
| max. particle size | 5 µm | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| max. medium temperature | 50 °c | ||
| max. ambient temperature | 50 °c | ||
| working pressure max | 6 bar | ||
| nozzle Ø | 0.7 mm | ||
| Version | electrical control, t-design | ||
| activation | electrically |
