| seal material | acrylonitrile butadiene rubber | ||
| Housing Material | aluminum, anodized | ||
| min. medium temperature | -10 °c | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 0.5 bar | ||

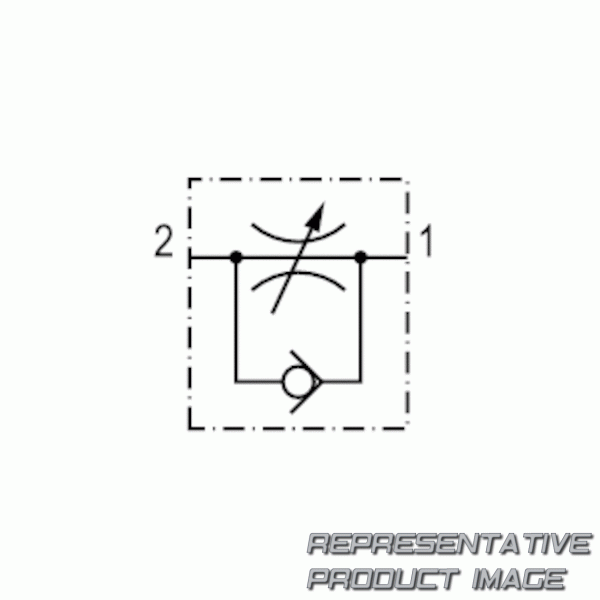

| throttle | exhaust air throttling | ||
| compressed air connection type 1 | push-in fitting | ||
| direction of throttle | 2 > 1 | ||
| port 2 | g 1/8 |
| material flow control screw | brass | ||
| max. medium temperature | 70 °c | ||
| max. ambient temperature | 70 °c | ||
| working pressure max | 10 bar | ||
| Medium | compressed air | ||
| compressed air connection type 2 | external thread | ||
| nominal flow qn 2 to 1 | 360 l/min | ||
| throttle bore Ø | 3.5 mm | ||
| port 1 | Ø 6 |
