| min. medium temperature | 5 °c | ||
| min. ambient temperature | 5 °c | ||
| working pressure min. | 2.5 bar | ||
| angle of rotation min. | 0 ° | ||
| repetitive precision | 0.05 ° | ||
| max. permissible mass moment of inertia | 10 kg cm² | ||
| max. permissible axial bearing load | 330 n | ||
| min. swivel times | 0.3 s | ||
| number of air ducts | 2 | ||
| frame size | rcm-12 | ||

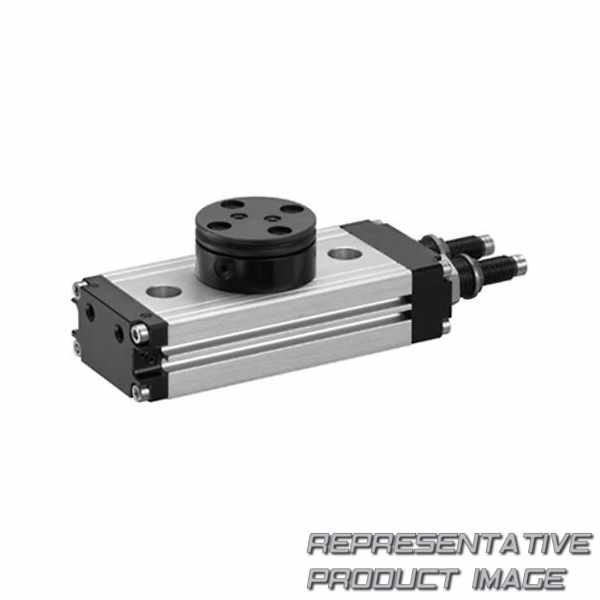

| rotary compact module version | double piston with rack | ||
| compressed air connection | m5 |
| max. ambient temperature | 60 °c | ||
| working pressure max | 8 bar | ||
| angle of rotation max. | 90 ° | ||
| Cushioning | non-adjustable | ||
| theoretical torque | 0.95 nm | ||
| max. permissible radial bearing load | 290 n | ||
| air consumption per rotation | 5.86 cm³ | ||
| theoretical torque at | 6 bar | ||
| air duct | with air duct | ||
| easy2combine | capable | ||
| magnetic piston | with magnetic piston | ||
| Diameter | 12 mm |
