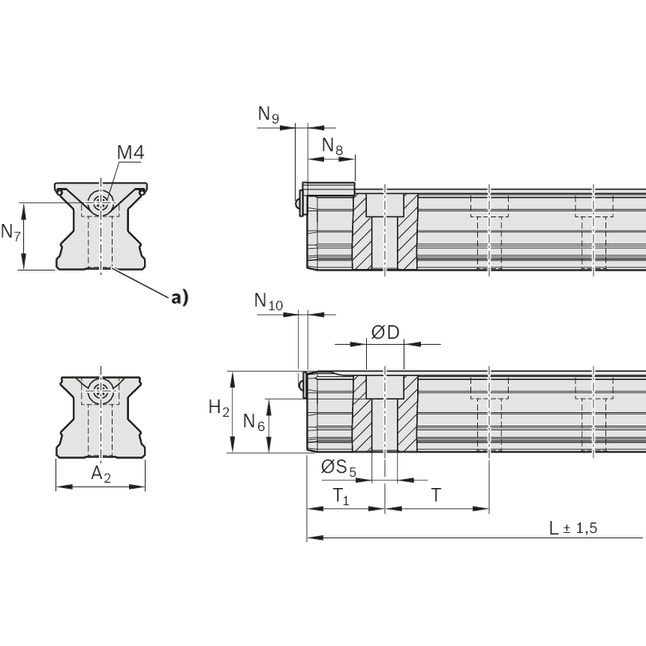

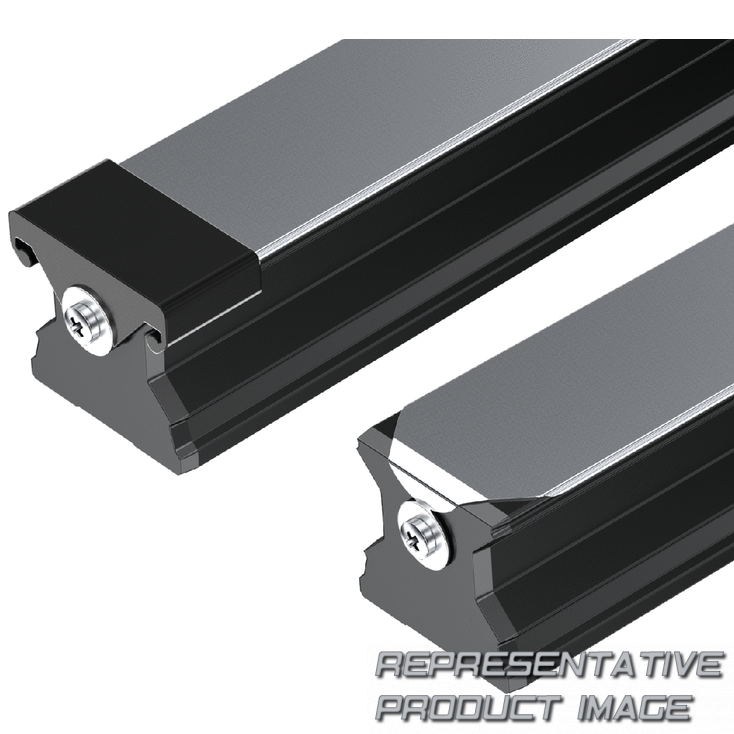

Roller guide rail with cover strip and threaded holes on end faces.
Retention with screw-down protective caps made of
plastic, or alternatively with screws and washers
(included).
a)
For Roller Guide Rails of accuracy class H, this
base area may be without a groove for manufacturing reasons.
| D | 24 | mm | |
| N6 | 28.7 mm ±0.5 | ||
| N8 | 20 | mm | |
| N10 | 4.35 | mm | |
| T | 60 | mm | |
| T1 s (Preferred dimension T1S with tolerances ± 0.75 ) | 28 | mm |
| Dimension H2 with cover strip (with cover strip 0.3 mm) | 47.85 | mm | |
| N7 | 30 | mm | |
| N9 | 7 | mm | |
| ØS5 | 16 | mm | |
| T1 min | 20 | mm | |
| nB | 66 |
| m | 13.10 | kg | |
| Operating conditions | Operating conditions | ||
| Permissible ambient temperature (min ... max) (Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. ) | -10 °C ... +80 °C |
| Lmax | 3,956 | mm | |
| Size | 55 |
