REXROTH R180525331 roller guide rail carbon steel

Name: R180525331 REXROTH
Brand: REXROTH
SKU: 431121-en-eur
Price: 372.65 EUR
Availability: InStock

RSA-025-SNS-H-MA-AK

372.65 € /m (vat. excl.) ~~424.82 €~~ /m -12%

50 m with 1 to 3 days delivery to France

Find your match! Click to explore runner blocks that pair with this guide rail

Specifications

For mounting from above

Series (R1805)	SNS/SNO with plastic caps R1805
Size (25)	25 size

Accuracy class (3)	H Hight Accuracy Level
Sections (31)	One-piece

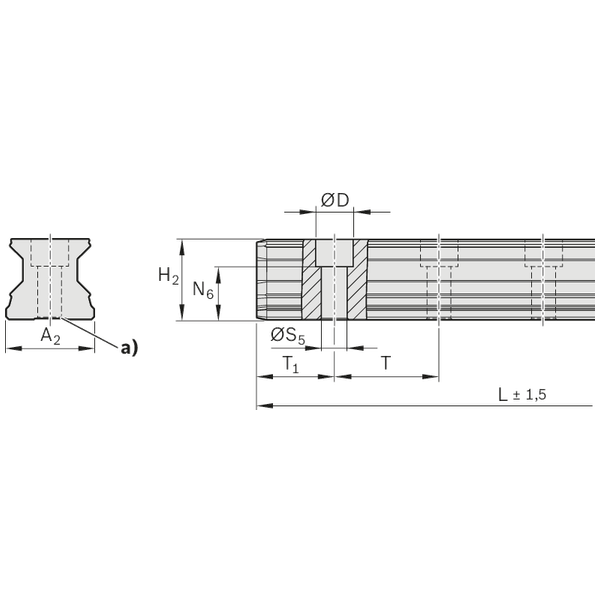

Dimensions
Technical data

Plastic mounting hole plugs are supplied with the
roller guide rails and are also available as accessories.
To mount plastic mounting hole plugs, see
"Mounting instructions for roller rail systems".

^a) For roller guide rails of accuracy class H, this
base area may be without a groove for manufacturing reasons.

D	11	mm
N₆	14.3 mm ±0.5
T	30	mm
T_{1 s} (Preferred dimension T_1S with tolerances ± 0.75 )	13	mm

H₂	23.40	mm
ØS₅	7	mm
T_{1 min}	10	mm
n_B	133

m	3.10	kg
Operating conditions	Operating conditions
Permissible ambient temperature (min ... max) (Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. )	-10 °C ... +80 °C
