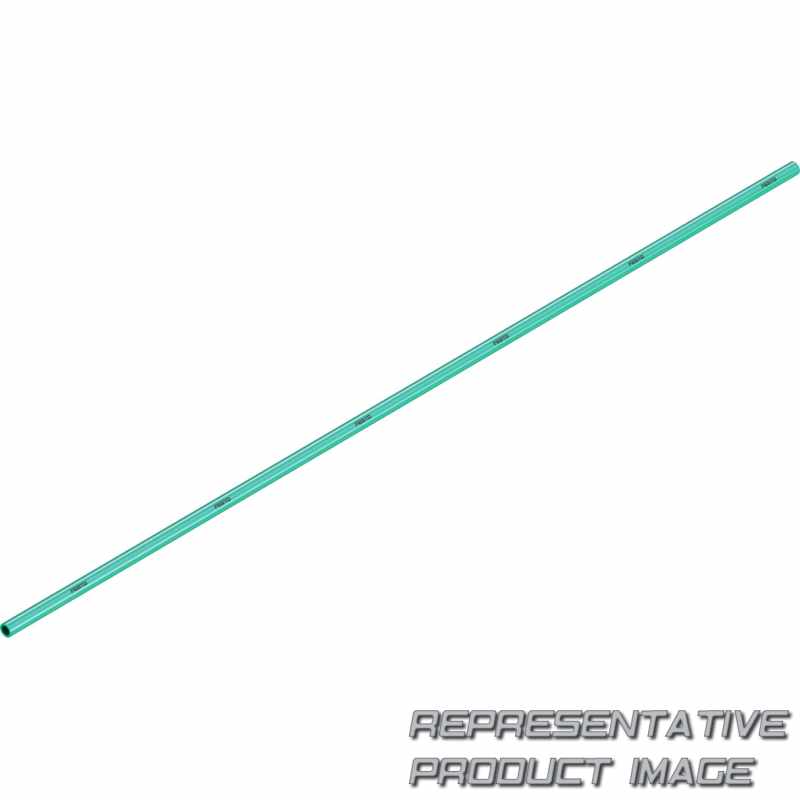

FESTO 558291 plastic tubing

Name: 558291 FESTO
Brand: FESTO
SKU: 686009-en-eur
Price: 0.6 EUR
Availability: InStock

PUN-H-3X0,5-GN

0.60 € /m ~~0.76 €~~ /m -21%

37 m with 1 to 3 days delivery to United States

Specifications

Series (PUN)	Plastic tubing, polyurethane
Alternative material characteristic (H)	Hydrolysis-resistant
Pipe/tubing O.D. x wall thickness (3x0.5)	3x0.5 mm

Material tubing		TPE-U(PU)
Shore hardness		D 52 +/-3
Pneumatic connection		For push-in connector outside diameter of 3 mm
Ambient temperature		-35 °C ... 60 °C
Cleanroom class		Element installed statically, no meaningful evaluation possible according to ISO 14644-1
LABS (PWIS) conformity		VDMA24364-B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Approval		German Technical Control Board (TÜV)
Tubing characteristics		Suitable for energy chains
Inside diameter		2,1 mm
Outside diameter		3 mm

Note on materials		RoHS-compliant
Colour		Green
Product weight according to length		0,004 kg/m
Suitable for use with food		See supplementary material information
Suitability for the production of Li-ion batteries		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Fire test material		UL94 HB
Certificate issuing authority		B 013277 0506 00
Temperature-dependent operating pressure		-13,775 psi ... 145 psi
Min. bending radius		6 mm
Flow-relevant bending radius		12 mm
