NJ320C4 NTN

NTN
Bearings
Roller Bearings
Cylindrical roller bearings
NJ320C4

NTN NJ320C4

100mm x 215mm x 47mm

371.43 € (vat. excl.) ~~742.86 €~~ -50%

Limited stock only available on quotation

Specifications

Width	47mm
Inner Diameter	100mm

Outer Diameter	215mm
Weight	8.04Kg

Technical data

ra max - Max fillet radius		2,5 mm
dc min - Min inner ring GO diameter		143 mm
da min - Min shoulder diameter IR		113 mm
FTF - Characteristic cage frequency		0,411 Hz
BPFO - Characteristic outer ring frequency		5,344 Hz
Tmin - Min operating temperature		-40 °C
Nlim - Oil lubrication limit speed		3800 tr/min
C0 - Static load		335 kN
Radial clearance class		C4
rs - Min fillet radius		3 mm
F - Under roller diameter		129,5 mm
Brand		NTN

Da max - Max shoulder diameter OR		202 mm
da max - Small face shoulder max diameter		125 mm
BSF - Characteristic rolling element frequency		5,447 Hz
BPFI - Characteristic inner ring frequency		7,656 Hz
Tmax - Max operating temperature		120 °C
Nlim - Grease lubrication limit speed		3300 tr/min
Cu - Fatigue limit load		36 kN
C - Dynamic load		330 kN
r1s - Min fillet radius		3 mm
d1 - IR flange outer diameter		140,5 mm
E - Upper roller diameter		185,5 mm

Related products

21320-E1-XL-TVPB

FAG

278.04 €

21320-E1-XL-TVPB-C3

FAG

249.40 €

6320 M

SKF

879.23 €

7320-B-G-M

SKF

330.35 €

7320-B-XL-MP-UB

FAG

569.77 €

7320B MB U

RHP

678.46 €

7320-B-XL-MP

FAG

469.28 €

7320-B-XL-MP-UA

FAG

519.19 €

NUP320-E-M1A-C3

FAG

720.26 €

NUP320-E-XL-M1A-C3

FAG

721.09 €

30320 J2

SKF

453.99 €

21320-E1-XL-K-TVPB-C3

FAG

279.04 €

21320-E1-XL-K-TVPB

FAG

308.29 €

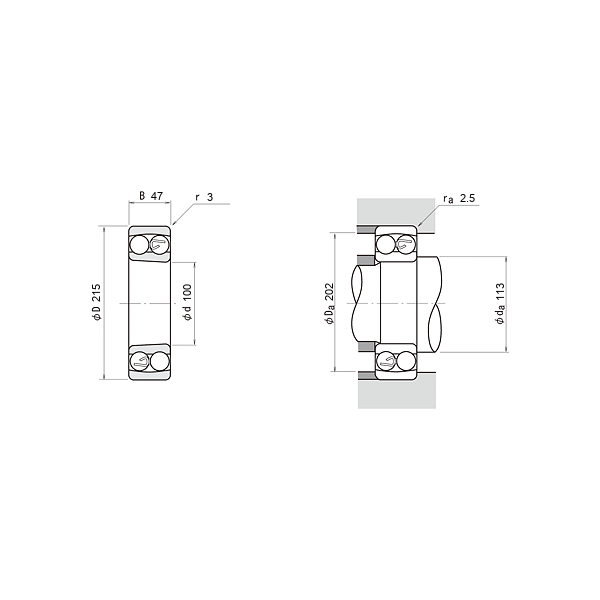

1320K C3
