MR122016 NTN

NTN
Bearings
Roller Bearings
Needle Roller bearings
Needle Roller bearings
MR122016

NTN MR122016

19,05 x 31,75 x 25,4

21.26 € (vat. excl.) ~~28.79 €~~ -26%

6 pcs. with 1 to 3 days delivery to France

Specifications

Width	25,4
Inner Diameter	19,05

Outer Diameter	31,75
Weight	73g

Technical data

ras max - Max shaft & housing fillet radius		1 mm
BSF - Characteristic rolling element frequency		5,589 Hz
BPFI - Characteristic inner ring frequency		6,454 Hz
Tmax - Max operating temperature		120 °C
Nlim - Oil lubrication limit speed		21000 tr/min
C0r - Static load rating		29,1 kN
Radial clearance class		CN
Lubrication hole on outer ring		Yes
Brand		NTN

Da max - Max shoulder diameter OR		26,5 mm
FTF - Characteristic cage frequency		0,413 Hz
BPFO - Characteristic outer ring frequency		4,546 Hz
Tmin - Min operating temperature		-20 °C
Nlim - Grease lubrication limit speed		14000 tr/min
Cr - Dynamic load rating		25 kN
k - Hole diameter		2,5 mm
rs - Min fillet radius		1 mm

Related products

SCE2816B

INA

14.31 €

MR162416

NTN

21.26 €

SCE2016B

INA

14.39 €

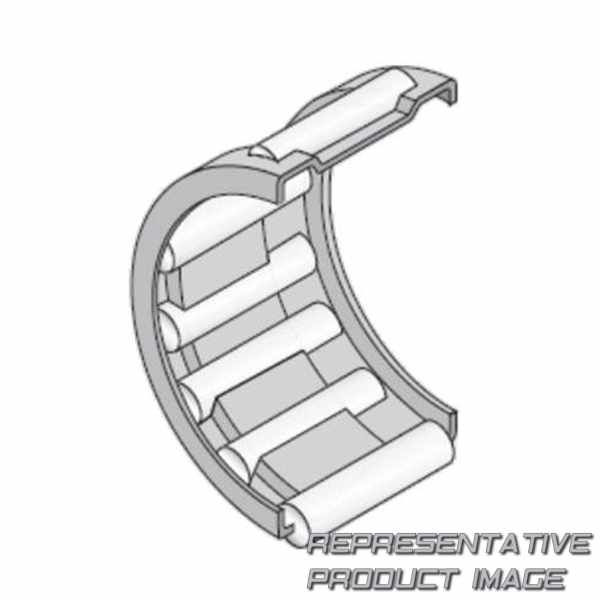

PCJ404616

NTN

37.10 €

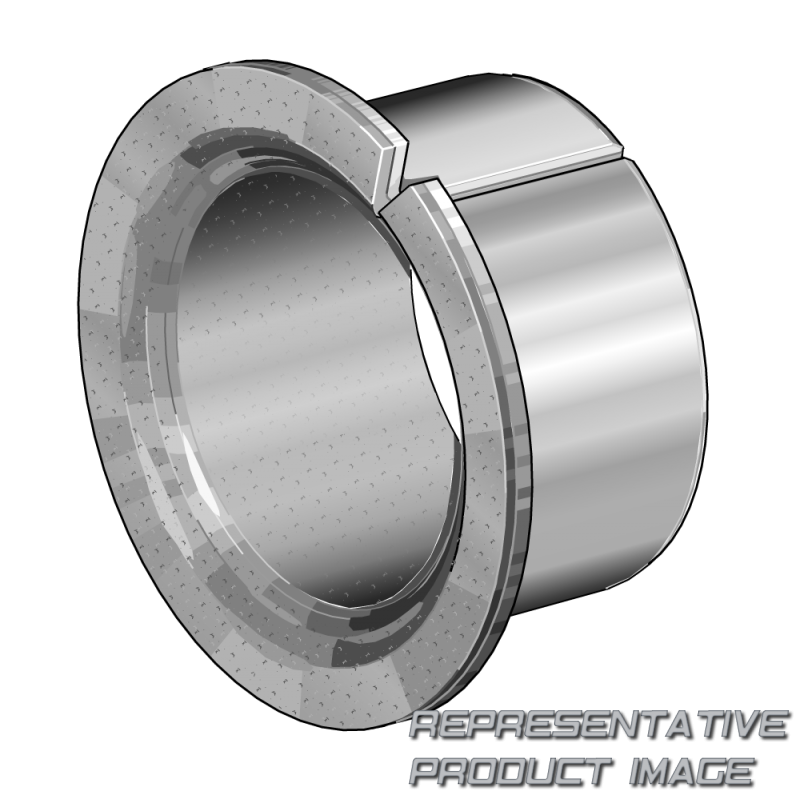

GLY.PGZ1616-F

SKF

4.04 €

MR243316

NTN

30.60 €

NRB3X25,4-G2

INA

0.20 €

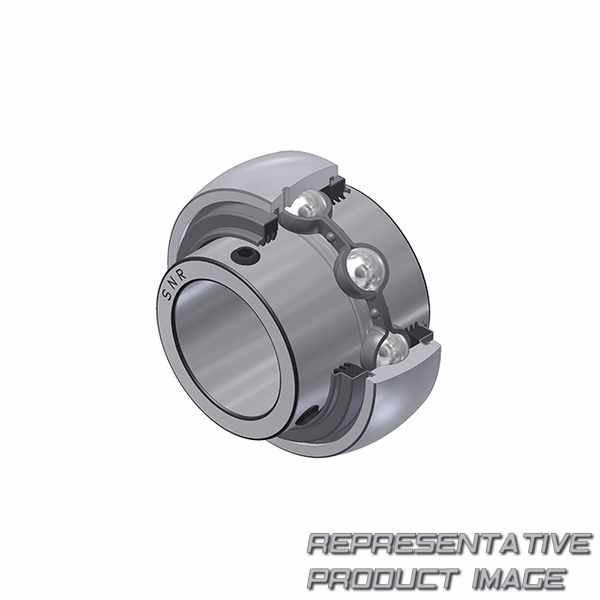

UC.204-12.G2.L3

SNR

19.62 €

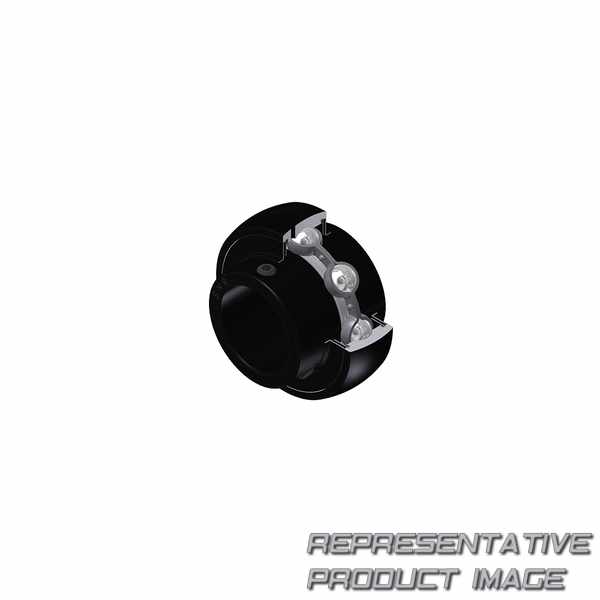

UC 204-12 G2T20

SNR

18.95 €

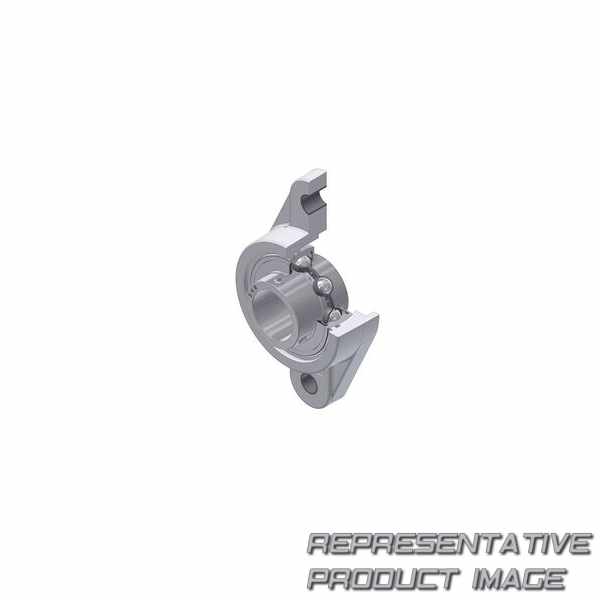

MUCNFL 204-12
