| weight rail (kg) | 6.10 | ||
| mq - dyn. cross moment capacity (nm) | 5,919 | ||
| m0q - static cross moment capacity (nm) | 10,624 | ||
| c0 - static load capacitiy (n) | 324,000 | ||
| n - lateral fixing hole spacing | 75 | ||
| l1 - exterior fixing hole spacing | 95 | ||
| j - carriage height | 67 | ||

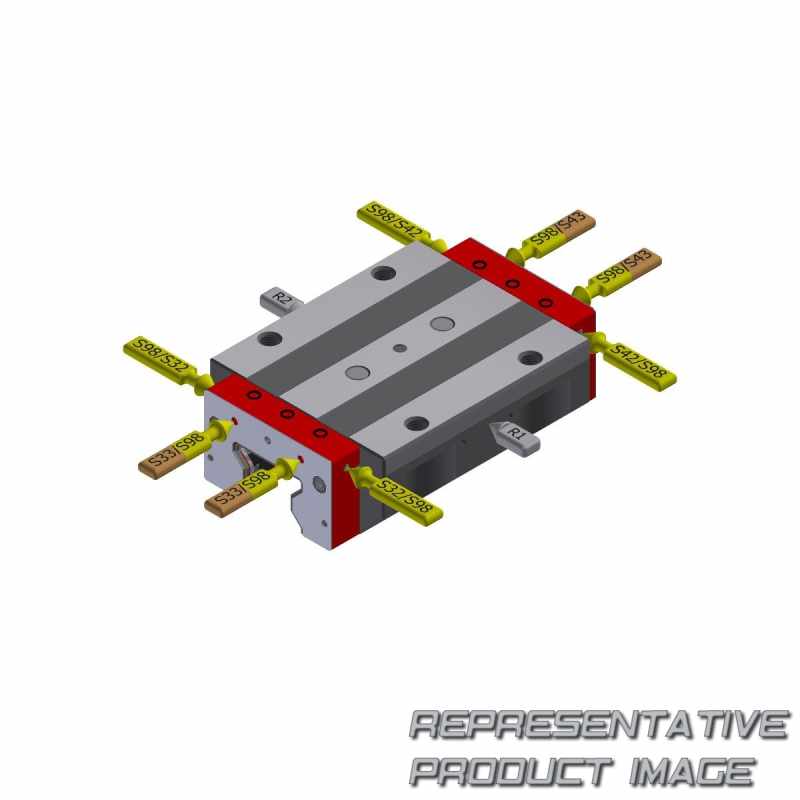

| c4 - position of lateral lube hole | 46.75 | ||
| c1 - position of center front lube hole | 19 | ||
| b - carriage width in mm | 100 | ||
| coating | cn | ||
| Accuracy class | g1 | ||
| carriage build form | d |
| ml - dyn. longitud. moment capacity (nm) | 4,872 | ||
| m0l - static longitud. moment capacity (nm | 8,745 | ||
| c100 - dynamic load capacity (n) | 180,500 | ||
| o - reference face height | 12 | ||
| l6 - steel body length | 162 | ||
| l - carriage length | 214 | ||
| c7 - position of lateral lube hole | 42.50 | ||
| c3 - position of lateral lube hole | 19 | ||
| b2 - distance between locating faces | 23.50 | ||
| a - system height in mm | 80 | ||
| Preload class | v2 | ||
| buildsize | 55 | ||
| type (monorail carriage) | mr |
