FESTO 159710 solenoid valve

Name: 159710 FESTO
Brand: FESTO
SKU: 678930-en-eur
Price: 199.06 EUR
Availability: InStock

MN1H-5/2-D-3-S-C

199.06 € (vat. excl.) ~~303.81 €~~ -34%

1 pcs. with 1 to 3 days delivery to France

Specifications

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 2		Sub-base size 3 to ISO 5599-1
Pilot air port 14		Sub-base size 3 to ISO 5599-1
Type of mounting		On sub-base Via through-hole and screw
Product weight		1.000 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature		-5 °C ... 50 °C
Vibration resistance		Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. positive test pulse with 0 signal		3.700 µs
Switching time off		71 ms
lap		Positive overlap
Flow direction		Reversible
Type of piloting		Pilot actuated
Manual override		Detenting via accessory Non-detenting
Mounting position		optional
Exhaust-air function		With flow control option
Nominal size		14,5 mm
Maritime classification		See certificate
Design		Piston gate valve
Operating voltage		Via solenoid coil, must be ordered separately
Standard nominal flow rate		4.500 l/min
Type of actuation		Electric

Material seals		HNBR NBR
Pneumatic connection, port 5		Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 3		Sub-base size 3 to ISO 5599-1
Pneumatic connection, port 1		Sub-base size 3 to ISO 5599-1
Pilot exhaust port 84		M5
Electrical connection		Via N1 coil, to be ordered separately
Ambient temperature		-5 °C ... 50 °C
Sound pressure level		85 dB(A)
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Max. negative test pulse with 1 signal		4.600 µs
Switching time on		49 ms
Pilot pressure		2 bar ... 10 bar

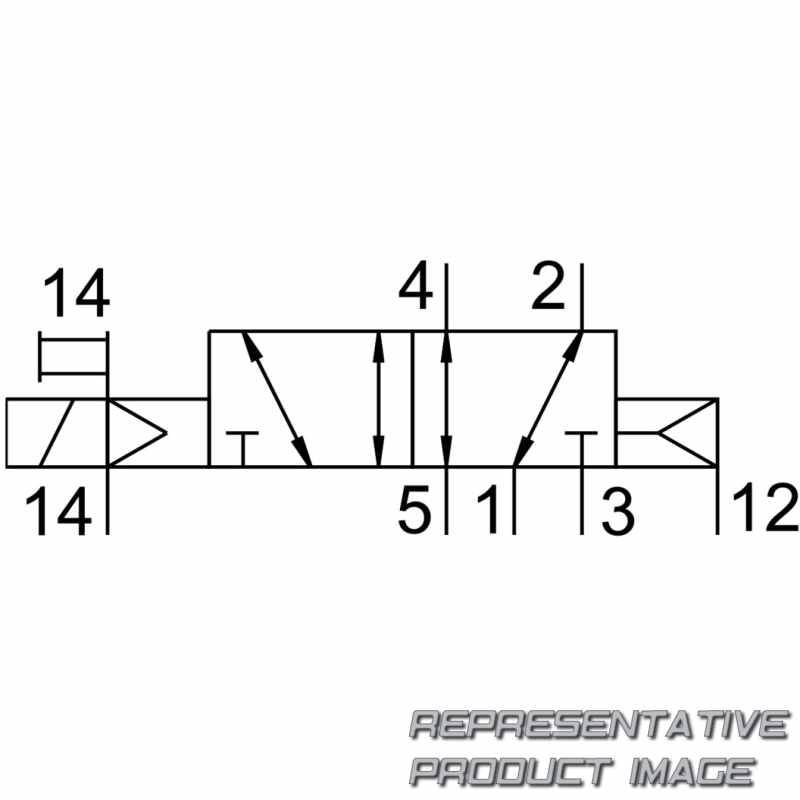

Symbol		00991301
Pilot air supply		External
ISO code		364
Conforms to standard		ISO 5599-1
Sealing principle		Soft
Grid dimension		71 mm
Degree of protection		IP65
Type of reset		Pneumatic spring
Operating pressure		-0,9 bar ... 16 bar
pneumatic working port		Sub-base size 3 to ISO 5599-1 G1/2
Construction width		65 mm
Valve function		5/2-way, monostable
