LLTHC 35 LR-T1 P5 Ewellix

EWELLIX
Linear Motion Technology
Linear Bushings and Shafts
Linear Ball Bearing Unit
LLTHC 35 LR-T1 P5

EWELLIX LLTHC 35 LR-T1 P5

Name: LLTHC 35 LR-T1 P5 EWELLIX
Brand: EWELLIX
SKU: 524242-en-eur
Price: 210.52 EUR
Availability: InStock

M/P010777

34mm x 70mm x 142,90

210.52 € (vat. excl.) ~~242.28 €~~ -13%

50+ pcs. with 1 to 3 days delivery to France

Specifications

Size	35
Width	142,90
Inner Diameter	34mm

Outer Diameter	70mm
Weight	1.90Kg

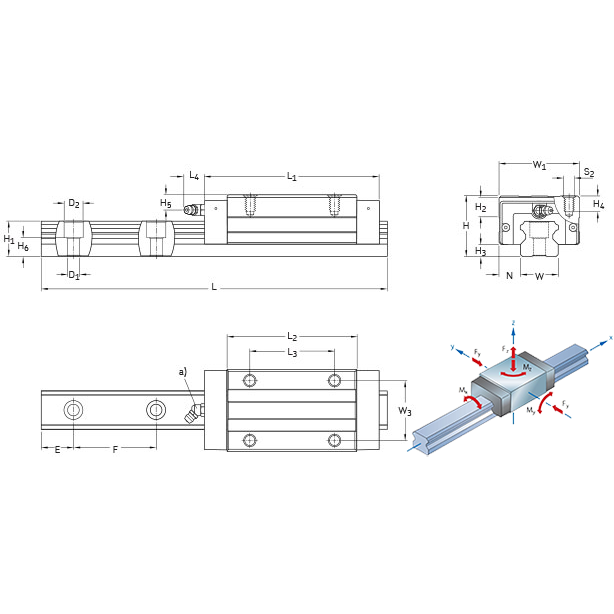

Dimensions

Precision class	Standard P5
M y0/z0	1,246	Nm
Mx0	1,224	Nm
C0	79,400	N
Weight	6.60
Emax	70	mm
D2	14	mm
F	80	mm
H1	29	mm
S2	M8
H4	17	mm
L4	14.60	mm
L2	105.50	mm
H3	9.50	mm
H	55	mm
W1	70	mm

Preload class	Light preload, 2% C T1
M y/z	706	Nm
Mx	694	Nm
C	45,000	mm
Lmax	3,944	mm
Emin	12	mm
D1	9	mm
H6	17	mm
W	34	mm
H5	19	mm
W3	50	mm
L3	72	mm
L1	142.50	mm
H2	18	mm
N	18	mm
Size	35

Related products

LLTHC 35 LR-T0 P5

EWELLIX

208.75 €

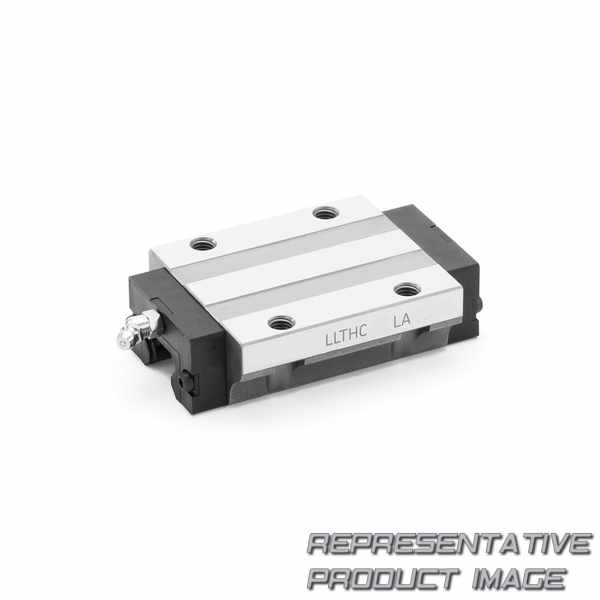

LLTHC 35 LA-T1 P5

EWELLIX

218.27 €

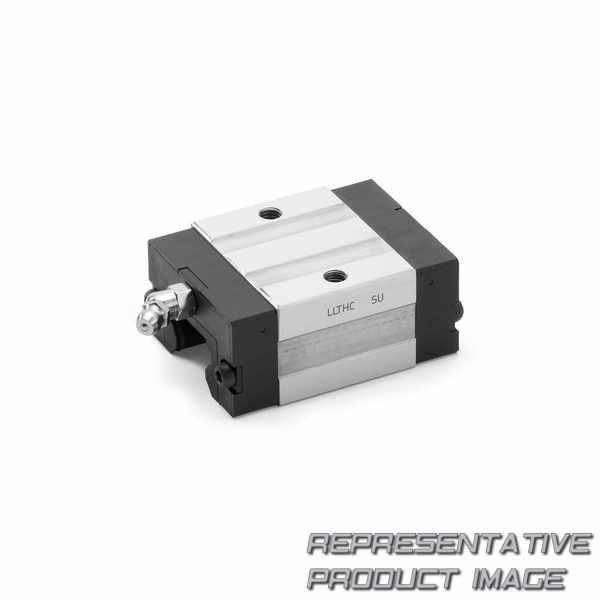

LLTHC 35 SU-T1 P5

EWELLIX

137.68 €

239/1060-K-MB1

FAG

40,209.87 €

LLTHC 35 SU-T0 P5

EWELLIX

79.15 €

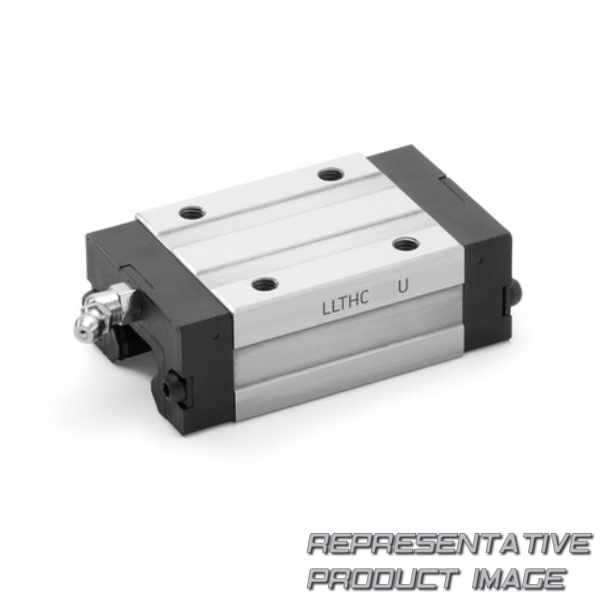

LLTHC 35 U-T0 P5
