| Brand | SNR | ||
| Carriage version | C | ||
| Size | 15 | ||
| Sealing | SS - End seals on both sides, inner and side seals | ||
| Special options | N - Standard | ||
| Lubricant | A - SNR LUB HEAVY DUTY | ||

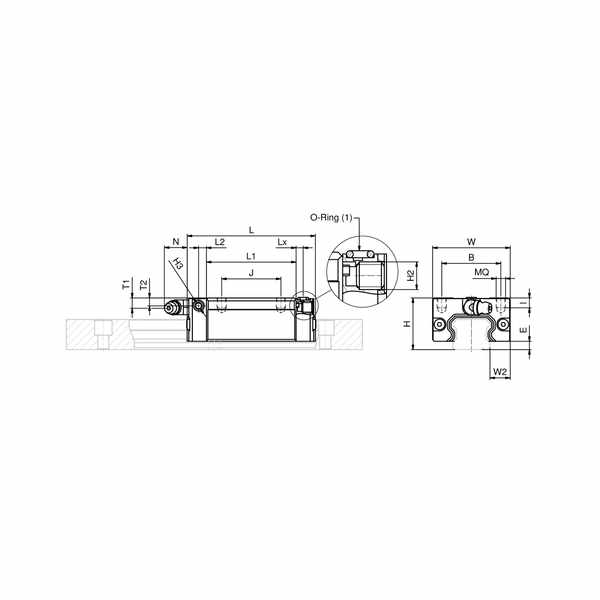

| W | 34 mm | ||
| E | 3,4 mm | ||
| J | 26 mm | ||
| L | 4,8 mm | ||
| H2 | M 3 | ||
| N | 5,7 mm | ||
| L2 | 4,2 mm | ||
| Lx | 3 mm | ||
| C100 | 9,26 kN | ||
| Mx | 0,137 kN/m | ||
| Mz | 0,12 kN/m |
| Series | LGB | ||
| Carriage Height | S | ||
| Design type | BN | ||
| Material | Carbon steel | ||
| Lubrication connection | 02 - Cup head grease nipple 0° | ||
| H | 24 mm | ||
| W2 | 9,5 mm | ||
| L - Length | 58,6 mm | ||
| MQ | M 4 | ||
| L1 | 40,2 mm | ||
| T1 | 5,5 mm | ||
| T2 | 4,5 mm | ||
| H3 | M 3 | ||
| C50 | 11,67 kN | ||
| C0 | 19,9 kN | ||
| My | 0,12 kN/m |
