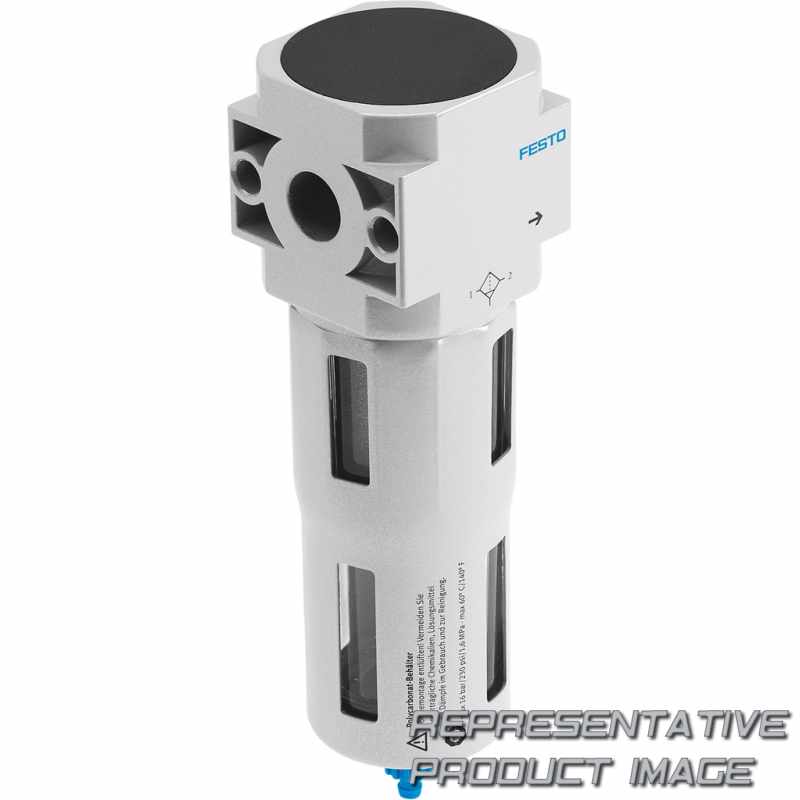

FESTO 192565 micro filter

Name: 192565 FESTO
Brand: FESTO
SKU: 668048-en-eur
Price: 399.24 EUR
Availability: InStock

LFMA-D-MAXI

399.24 €

4 pcs. with 1 to 3 days delivery to United States

Specifications

Size (MAXI)	Grid dimension 66 mm (without connecting plates)
Filter change sensing	None
Condensate drain	Manually rotating

Note on materials		RoHS-compliant
Material filter		Borosilicate fibre
Pneumatic connection, port 2		Sub-base
Mounting position		Vertical +/-5°
Residual oil content		0,5 mg/m³
Media temperature		5 °C ... 60 °C
Bowl guard		Metal bowl guard
Air purity class at output		Compressed air to ISO 8573-1:2010 [1:7:2] Inert gases
Operating pressure		1 bar ... 16 bar
Condensate drain		Manually rotating
Design		Fibre filter
Series		D

Material bowl		PC
Material housing		Die-cast zinc
Pneumatic connection, port 1		Sub-base
Type of mounting		In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Filter efficiency		99,99 %
Operating medium		Compressed air to ISO 8573-1:2010 [6:8:4] Inert gases
Symbol		00991519
Grade of filtration		0,01 µm
Size		Maxi
