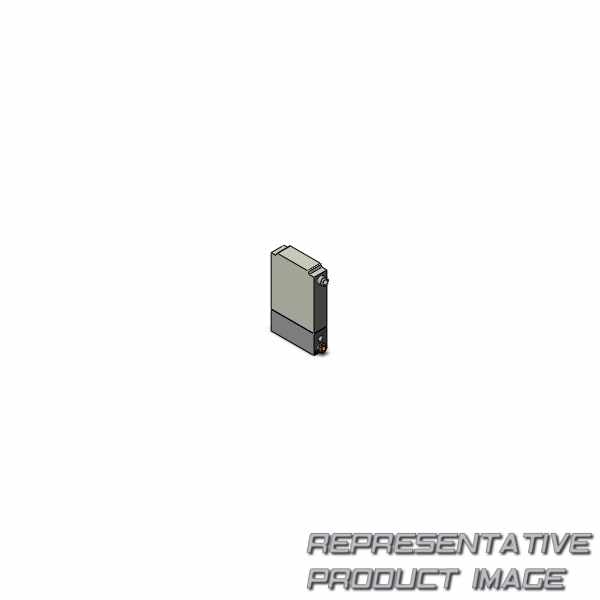

| model | itv005 | ||
| maximum supply pressure | 1.0 mpa | ||
| maximum flow rate | 6 l/min(anr) (supply pressure: 0.6 mpa) | ||
| input signal | 4 to 20 ma dc, 0 to 20 ma dc | ||
| Output signal | 1 to 5 vdc (load impedance: 1 k or more) output accuracy: within ?6% (full span) | ||
| Hysteresis | within 0.5% (full span) | ||
| Sensitivity | within 0.2% (full span) | ||
| operating temperature range | 0 to 50c (no condensation) | ||
| connection type | built-in one-touch fittings | ||
| weight note 1) | 100 g or less (without option) |
| minimum supply pressure | set pressure +0.1 mpa | ||
| set pressure range | 0.001 to 0.9 mpa | ||
| Power supply | power supply voltage 24 vdc type: 0.12 a or less power supply voltage 12 to 15 vdc type: 0.18 a or less | ||
| input impedance | approximately 250 | ||
| Linearity | within ?1% (full span) | ||
| repeatability | within ?0.5% (full span) | ||
| temperature characteristics | within ?0.12% (full span)/c | ||
| enclosure | equivalent to ip65 ? | ||
| connection size | z, c: ?1/4andquot;, x: ?5/32andquot; | ||
| Weight | .52910 lb |
