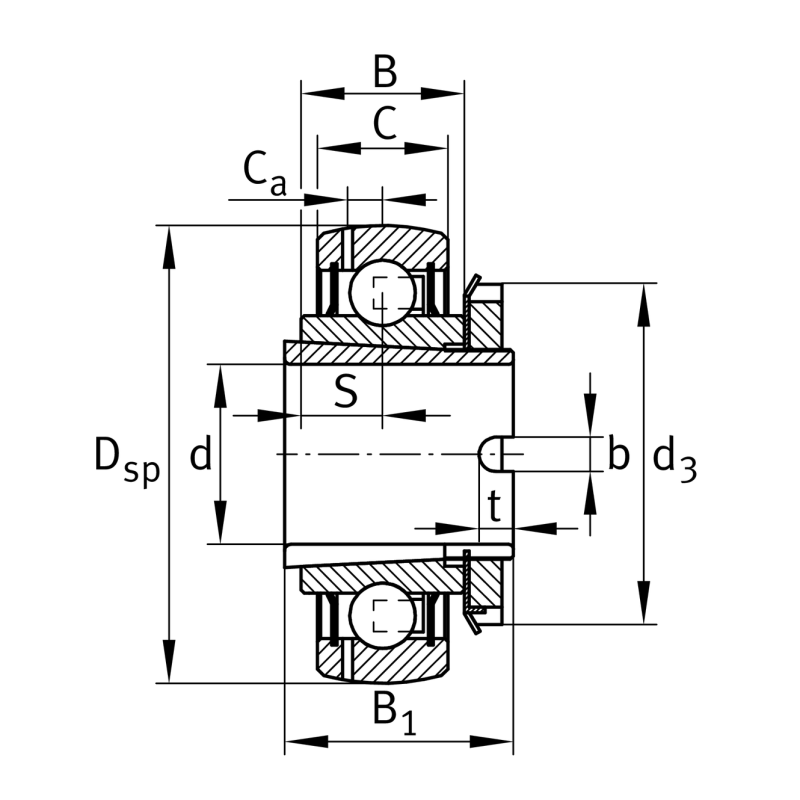

| Bore diameter | d | 25 | mm |
| Width | B | 15 | mm |
| Basic dynamic load rating, radial | Cr | 13,600 | |
| Fatigue load limit, radial | Cur | 420 | N |
| Outside diameter | D | 52 | mm |
| Locking collar total width | B1 | 28 | mm |
| Basic static load rating, radial | C0r | 7,800 |
| Width, outer ring | C | 15 | mm |
| Distance to lubrication hole | Ca | 3.90 | mm |
| Hight retaining slot adapter sleeve | t | 5 | mm |
| Distance raceway | S | 7.50 | mm |
| Width retaining slot | b | 5 | mm |
| Outside diameter locking collar/locknut | d3 | 38 | mm |
