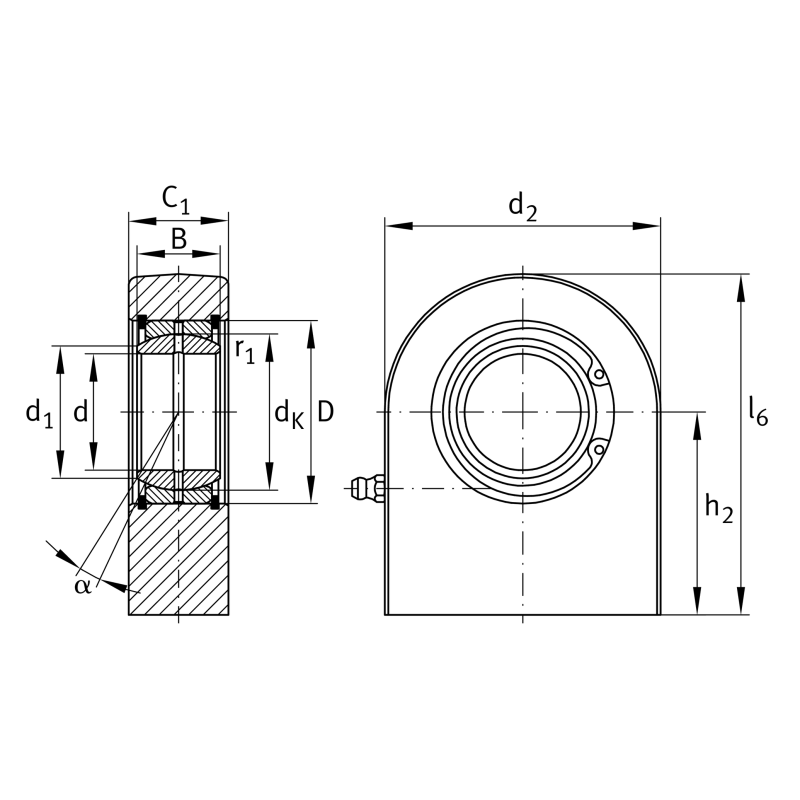

| Bore diameter bearing | d | 30 | mm |
| Width inner ring | B | 22 | mm |
| Basic static load rating, radial | C0r | 116,000 |
| Outside diameter bearing | D | 47 | mm |
| Basic dynamic load rating, radial | Cr | 62,300 | |
| Radial Clearance | Gr | 0,037 - 0,1 |
| Edge Spacing | r1smin | 0.60 | mm |
| Ball diameter | dK | 40.70 | mm |
| Outer eye diameter | d2 | 65 | mm |
| Width of the rod end | C1 | 28 | mm |
| Tilt angle | α | 6 | ° |
| Bore diameter bearing, lower tolerance | dUT | -0.01 | mm |
| Outer flange diameter inner ring | d1 | 34.20 | mm |
| Shank Length Welding Head | h2 | 51 | mm |
| Width of the rod end, max. | C1 max | 29 | mm |
| Total length welding head | l6 | 83.50 | mm |
| Width inner ring, lower tolerance | BUT | -0.12 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | SCF30 ES (SKF) |
| Pavarini Components | TS30N |
| WSW Wälzlager | WS30N |
