GE120-AW INA

INA
Bearings
Spherical Plain Bearings and Rod Ends
Spherical Plain Bearings
GE120-AW

INA GE120-AW

0066521070000

1,658.36 € (vat. excl.) 2 pcs. with 1 to 3 days delivery to France

Replaces: GE120-AW (ELGES)

Specifications

Width	64mm

Weight	13.20Kg

Dimensions
Cross references

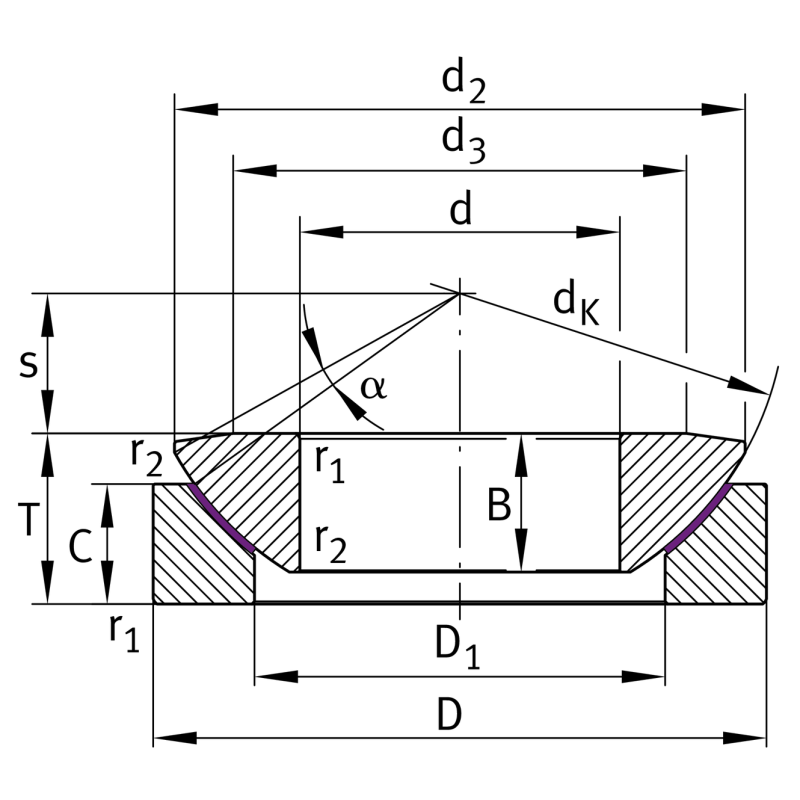

Dimensions

Ball diameter	d_K	245	mm
Front surface diameter of shaft washer	d₃	170	mm
Plane Surface Spacing	s	52.50	mm
Bore diameter bearing, lower tolerance	d_UT	-0.02	mm
Height, lower tolerance	T_UT	-0.50	mm

Outer eye diameter	d₂	214	mm
Width Outer ring	C	45	mm
Tilt angle	α	6.50	°
Outside diameter, lower tolerance	D_{o UT}	-0.03	mm
Width inner ring, lower tolerance	B_UT	-0.40	mm

Main Dimensions & Performance Data

Bore diameter bearing	d	120	mm
Height	T	64	mm
Basic dynamic load rating, axial	C_a	3,740,000

Outside diameter bearing	D	230	mm
Width inner ring	B	52	mm
Basic static load rating, axial	C_0a	6,230,000

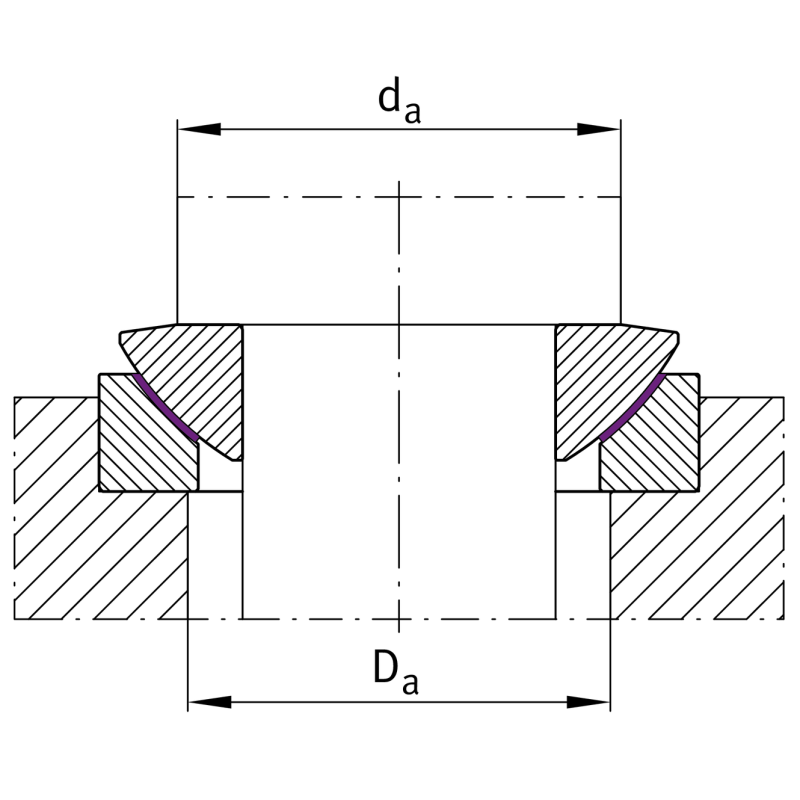

Mounting dimensions

Edge Spacing	r_1smin	0.30	mm

Connection measure Inner ring	d_{a max}	170	mm

Manufacturer	Part Number
Hung	GE120HXW
SKF	GX120F
