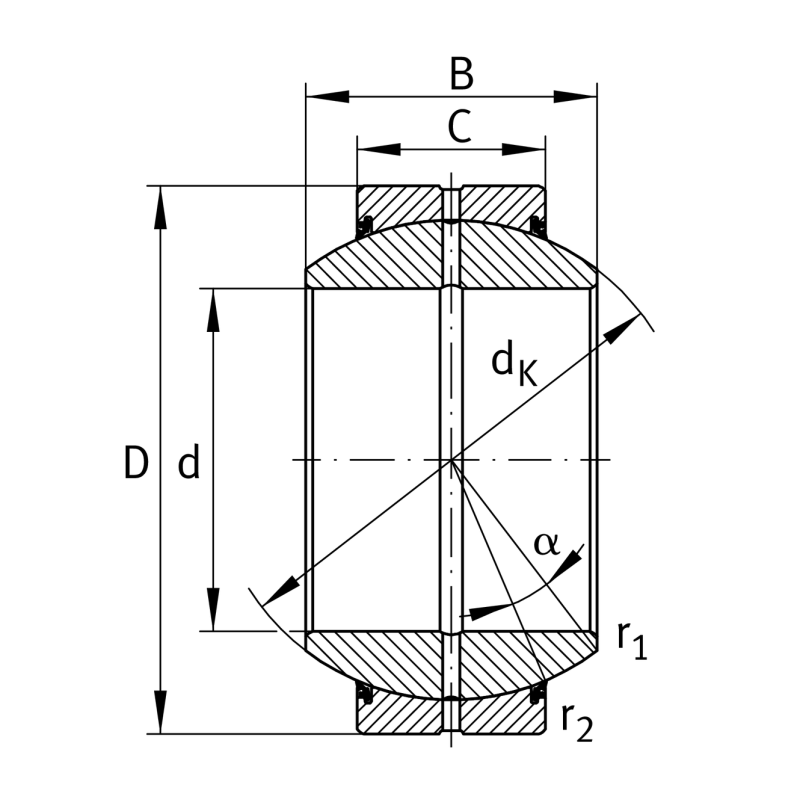

| Bore diameter bearing | d | 100 | mm |
| Width inner ring | B | 85 | mm |
| Basic static load rating, radial | C0r | 3,120,000 |
| Outside diameter bearing | D | 160 | mm |
| Basic dynamic load rating, radial | Cr | 812,000 |

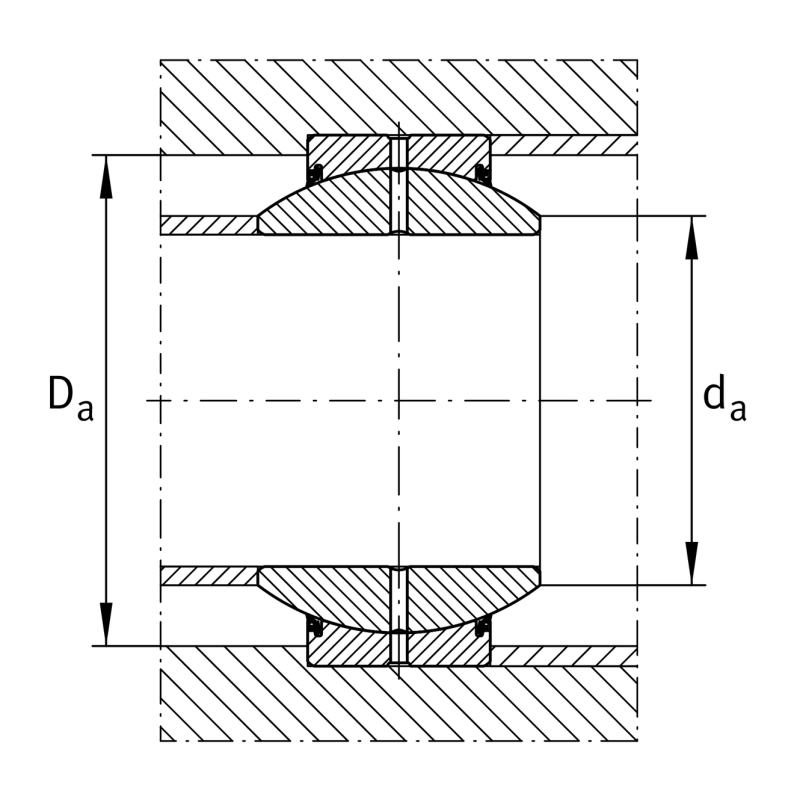

| Connection measure Inner ring | da max | 111.20 | mm |
| Width Outer ring | C | 55 | mm |
| Tilt angle | α | 14 | ° |
| Bore diameter bearing, lower tolerance | dUT | -0.02 | mm |
| Radial Clearance | Gr | 0,085 - 0,165 |
| Ball diameter | dK | 140 | mm |
| Edge Spacing | r1smin | 1 | mm |
| Outside diameter, lower tolerance | Do UT | -0.03 | mm |
| Width inner ring, lower tolerance | BUT | -0.20 | mm |
| Manufacturer | Part Number |
|---|---|
| RBC | MBH100110 |
| Hung | GE100B-A |
| RBC | MBH100110-SS |
| SKF | GEH100 ES-2RS (SKF) |
| Elges | GE100FO |
| Elges | GE100FO-2RS |
| IKO | GE100GS-2RS |
| Torrington | 100FSH160 |
| IKO | GE100GS |
| Torrington | 100FSH160-SS |
| LS Bearings | GEG100ES-2RS |
