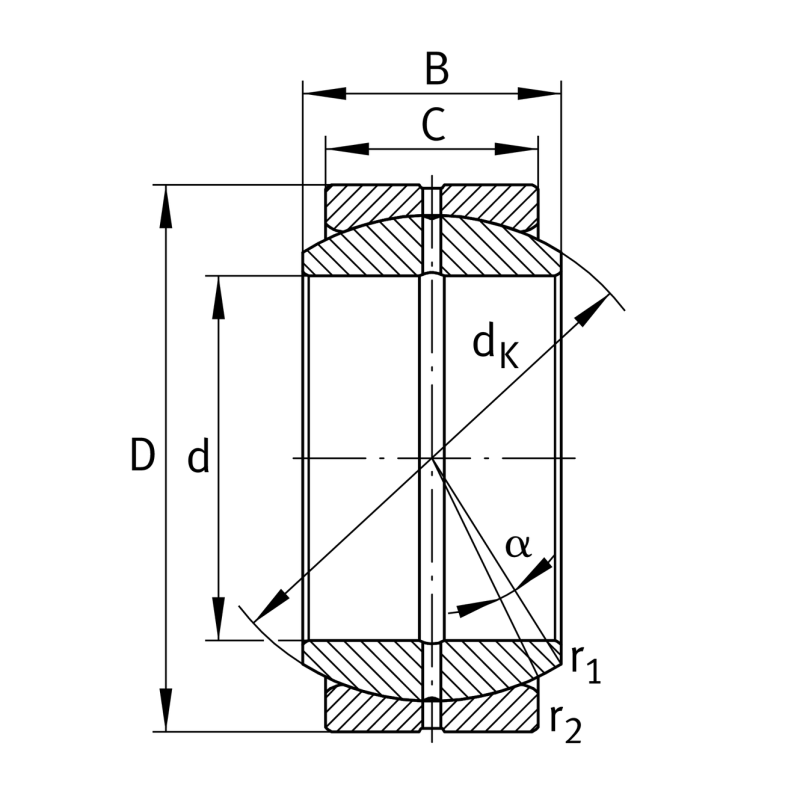

| Bore diameter bearing | d | 10 | mm |
| Width inner ring | B | 9 | mm |
| Basic static load rating, radial | C0r | 40,800 |
| Outside diameter bearing | D | 19 | mm |
| Basic dynamic load rating, radial | Cr | 10,600 |
| Connection measure Inner ring | da max | 13.20 | mm |
| Width Outer ring | C | 6 | mm |
| Tilt angle | α | 12 | ° |
| Bore diameter bearing, lower tolerance | dUT | -0.01 | mm |
| Radial Clearance | Gr | 0,032 - 0,068 |
| Ball diameter | dK | 16 | mm |
| Edge Spacing | r1smin | 0.30 | mm |
| Outside diameter, lower tolerance | Do UT | -0.01 | mm |
| Width inner ring, lower tolerance | BUT | -0.12 | mm |
| Manufacturer | Part Number |
|---|---|
| Askubal | GE10 |
| Elges | GE10DG |
| NTN | SA1-10 |
| Elges | GE10DA |
| Scholz & Co. | GE10DSS |
| ADR | GE10D |
| Elges | GE10DS |
| NTN | SA1-10B |
| Scholz & Co. | GE10 |
| SKF | GE10D |
| Scholz & Co. | GE10DS |
| Askubal | GE10DO |
| Deutsche Kugellagerfabriken | ZPS10 |
| ADR | GE10 |
| IKO | GE10E |
| SKF | GE10 E (SKF) |
